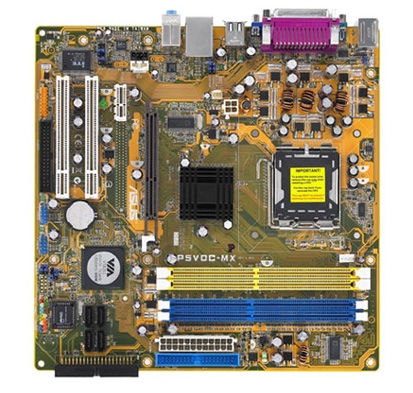

ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron
Model P5VDC-MX LGA775 Pentium D/Pentium 4/CeleronPart no. P5VDC-MX/CEAN 4719543142332
38 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Maximum graphics card memory64 MB
- USB 2.0 connectors2
- LAN controllerRealtek RTL8201CL
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Maximum graphics card memory
- 64 MB
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron
- Part number
- P5VDC-MX/C
- EAN / UPC
- 4719543142332
- Also known as
- ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 64 MB |
| Parallel processing technology support | Not supported |
| Graphics card | UniChrome Pro |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | 10/100Mb Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M800 Pro |
| Audio chip | Realtek ALC653 |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe ASUS LiveUpdate Utility Anti-virus |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
