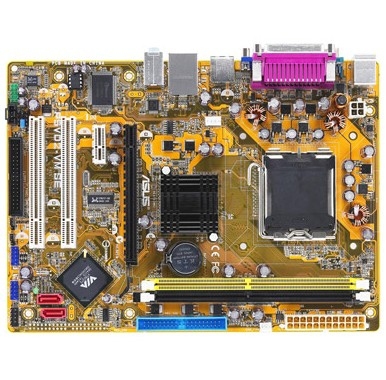

ASUS P5VD2-VM SE
Model P5VD2-VM SEPart no. 90-MBB59A-G0EAY00ZEAN 4719543148310
39 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, JBOD
- Maximum graphics card memory256 MB
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, JBOD
- Maximum graphics card memory
- 256 MB
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5VD2-VM SE
- Part numbers
- 90-MBB59A-G0EAY00Z, 90-MBB59A-G0EAY, 90-MBB59A-G0EAY0GZ, P5VD2-VM SE, 90-MBB59A-G0EAYZ
- EAN / UPC
- 4719543148310, 4719543154328, 610839154326
- Also known as
- ASUS P5VD2-VM SE motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M900 |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCIe x16 1x PCIe x1 2x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 178 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | CrashFree BIOS 2 ASUS EZ Flash ASUS Q-Fan MyLogo |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
