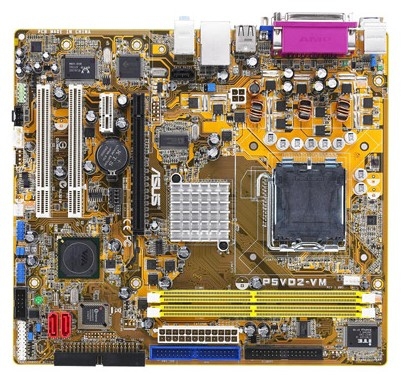

ASUS P5VD2-VM motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Model P5VD2-VMEAN 4719543146453
42 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, JBOD
- Maximum graphics card memory256 MB
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, JBOD
- Maximum graphics card memory
- 256 MB
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5VD2-VM
- Part numbers
- P5VD2-VM, 90-MBB590-G0EAYZ
- EAN / UPC
- 4719543146453, 610839146451
- Also known as
- ASUS P5VD2-VM motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Specifications
42 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M900 |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Overclocking features | ASUS C.P.R. SFS |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus software (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Serial ATA |
| Controller interface type | UltraDMA 133/100/66/33 |
| Special features | CrashFree BIOS 2 ASUS EZ Flash 2 ASUS Q-Fan MyLogo |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL |
