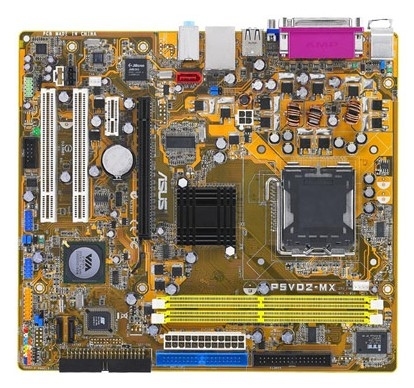

ASUS P5VD2-MX motherboard LGA 775 (Socket T) micro ATX
Model P5VD2-MXEAN 610839135684
38 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0
- Maximum graphics card memory64 MB
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8201CL
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0
- Maximum graphics card memory
- 64 MB
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8201CL
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5VD2-MX
- Part numbers
- P5VD2-MX, 90-MBB42C-G0EAYOKZ, P5VD2-MX?REFURB
- EAN / UPC
- 610839135684, 4719543135686
- Also known as
- ASUS P5VD2-MX motherboard LGA 775 (Socket T) micro ATX
Specifications
38 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 64 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM) |
Other features
| Specification | Value |
|---|---|
| Graphics controller | Integrated |
| Special features | CrashFree BIOS 2 ASUS Q-Fan ASUS EZ Flash MyLogo |
| Manageability features | WOL by PME, WOR by PME, Chassis Intruction, PXE |
