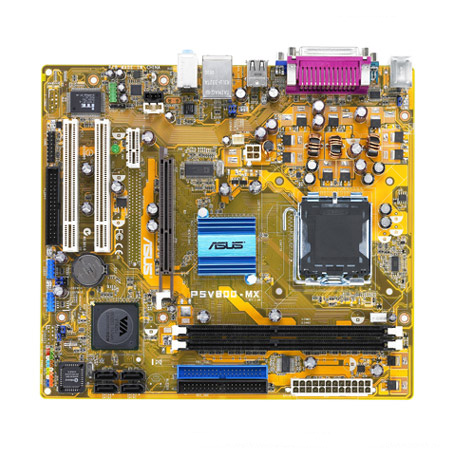

ASUS P5V800-MX PE4 Socket775 FSB800
Model P5V800-MX PE4 Socket775 FSB800Part no. 90-MBL3M0-G0EAYZ
37 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels1
- Maximum graphics card memory64 MB
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 1
- Maximum graphics card memory
- 64 MB
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5V800-MX PE4 Socket775 FSB800
- Part number
- 90-MBL3M0-G0EAYZ
- Also known as
- ASUS P5V800-MX PE4 Socket775 FSB800 VIA P4M800 LGA 775 (Socket T) micro ATX
Specifications
37 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 64 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8201CL 10/100 LAN Controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M800 |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM version) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | ITE IDE |
| GAME/MIDI connector | Yes |
| Graphics controller | VIA UniChrome Graphics |
| Manageability features | Power Loss Restart CrashFree BIOS 2 ASUS Q-Fen ASUS EZ Flash WOL by PME,WOR by PME, Chassis Intrusion, PXE, RPL |
| RAID controller type | VIA VT8251 South Bridge |
