ASUS P5V-VM SE DH
Model P5V-VM SE DHEAN 610839147489
30 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1
- Maximum graphics card memory256 MB
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1
- Maximum graphics card memory
- 256 MB
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5V-VM SE DH
- Part numbers
- P5V-VM SE DH, 90-MBB2WB-G0EAYZ
- EAN / UPC
- 610839147489, 4719543147481
- Also known as
- ASUS P5V-VM SE DH motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

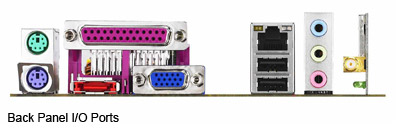

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA P4M900 |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
| Overclocking features | ASUS C.P.R. SFS - 133MHz - 300MHz/1MHz PCI-E/SATA. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-E x 16 1 x PCI-E x 1 2 x PCI |
Other features
| Specification | Value |
|---|---|
| Audio output | ADI AD1986A SoundMAX |
| Graphics controller | VIA Chrome9 HC |
