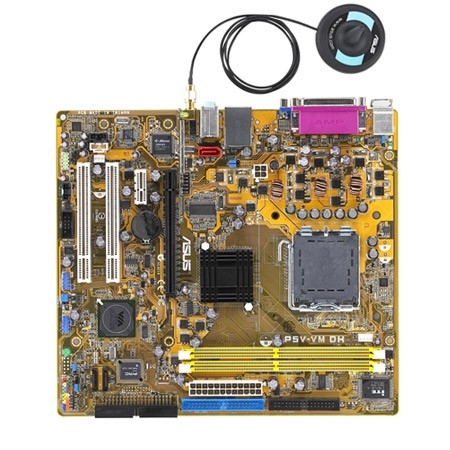

ASUS P5V-VM DH
Model P5V-VM DHEAN 4719543138335
37 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity3
- LAN controllerRealtek RTL8201CL
- Motherboard form factormicro ATX
- Expansion slots1x PCI-E x16 1x PCI-E x1 2x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 3
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- micro ATX
- Expansion slots
- 1x PCI-E x16 1x PCI-E x1 2x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5V-VM DH
- Part numbers
- P5V-VM DH, 90-MBB2W5-G0EAYZ
- EAN / UPC
- 4719543138335, 610839138333
- Also known as
- ASUS P5V-VM DH motherboard LGA 775 (Socket T) micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | Fast Ethernet, Wireless LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | ADI AD1986A |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS DH Remote Application ASUS WiFi-AP Solo Wizard ASUS PC Probe ASUS LiveUpdate Utility Anti-virus software (OEM) |
Other features
| Specification | Value |
|---|---|
| Graphics controller | VIA UniChrome Graphics |
| Special features | CrashFree BIOS 2 C.P.R. Q-FAN EZ Flash MyLogo |
| Manageability features | WOL by PME, WOR by PME, Chassis Intrusion, PXE & RPL |
