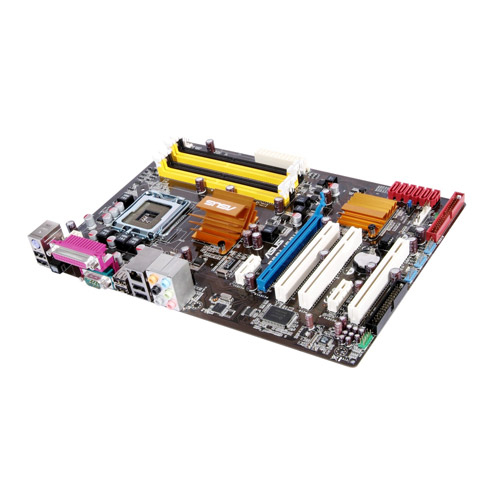

ASUS P5QL/EPU LGA 775 (Socket T) ATX
Model P5QL/EPUPart no. 90-MIB575-G0EAY00ZEAN 4719543168066
42 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5QL/EPU
- Part numbers
- 90-MIB575-G0EAY00Z, ASUSP5QL-EPU, P5QL/EPU, 90-MIB75-G0EAY00Z
- EAN / UPC
- 4719543168066, 610839168064
- Also known as
- ASUS P5QL/EPU LGA 775 (Socket T) ATX
Specifications
42 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 204 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA |
| Audio output | VIA VT1708S |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
ASUS P5QL/EPU LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how ASUS P5QL/EPU LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5QL/EPU LGA 775 (Socket T) ATX
All motherboard comparisons- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEBCompare specs
- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsASUS Z8NA-D6 Intel® 5500 Socket B (LGA 1366) ATXCompare specs

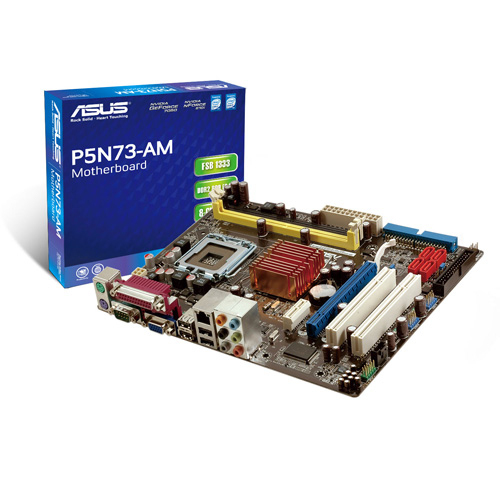

- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsASUS P5N73-AM/C/SI motherboard LGA 775 (Socket T) micro ATXCompare specs

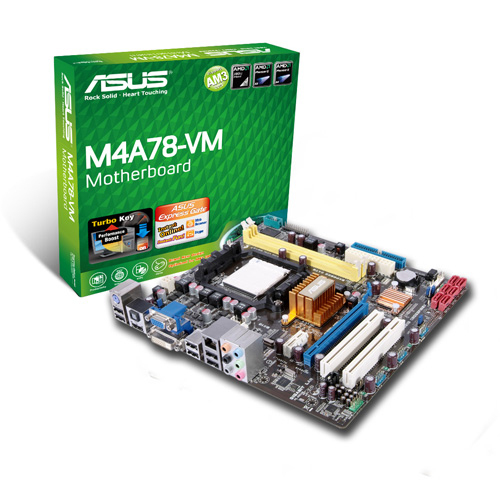

- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsASUS M4A78-VM AMDCompare specs
- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsMSI 770-C35 AMD 770 Socket AM3 ATXCompare specs
- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsMSI K9A2 Neo2Compare specs

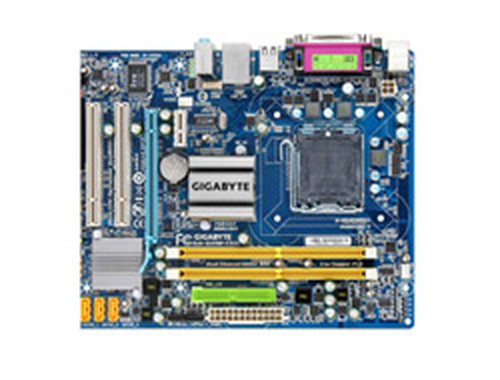

- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsGIGABYTE GA-G41M-ES2L motherboard LGA 775 (Socket T) micro ATXCompare specs

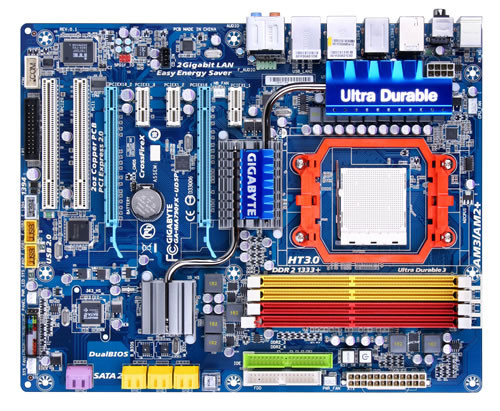

- ASUS P5QL/EPU LGA 775 (Socket T) ATX vsGIGABYTE GA-MA790FX-UD5P motherboard LGA 775 (Socket T) ATXCompare specs
