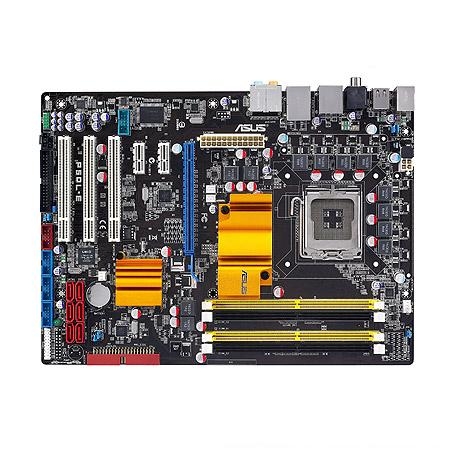

ASUS P5QL-E LGA 775 (Socket T) ATX
Model P5QL-EPart no. 90-MIB4Z0-G0EAY00ZEAN 610839163588
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresGigabit LAN
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Gigabit LAN
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5QL-E
- Part numbers
- 90-MIB4Z0-G0EAY00Z, P5QL-E
- EAN / UPC
- 610839163588, 4719543163580
- Also known as
- ASUS P5QL-E LGA 775 (Socket T) ATX
Specifications
41 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |

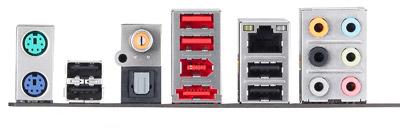

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | Precision Tweaker 2, SFS, ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 224 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | - Drivers - ASUS PC Probe II - Express Gate - ASUS AI Suite - Anti-virus software (OEM version) - ASUS Update |
Other features
| Specification | Value |
|---|---|
| I/O ports | 3 in 1 Q-connector |
What people say
Reviews & ratings
ASUS P5QL-E LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how ASUS P5QL-E LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5QL-E LGA 775 (Socket T) ATX

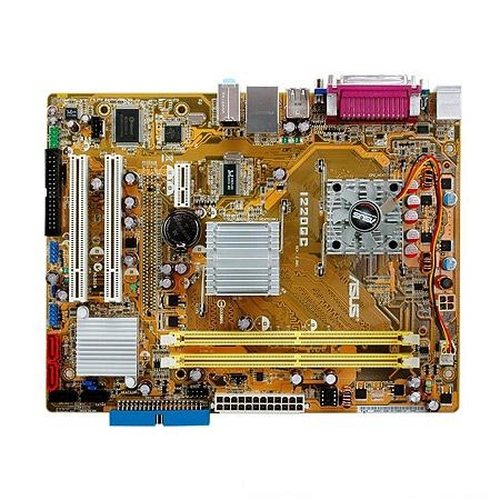

All motherboard comparisons- ASUS P5QL-E LGA 775 (Socket T) ATX vsASUS I220GC LGA 775 (Socket T) micro ATXCompare specs

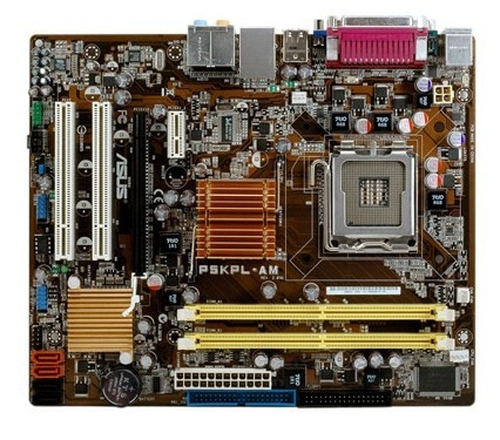

- ASUS P5QL-E LGA 775 (Socket T) ATX vsASUS P5KPL-AM LGA 775 (Socket T) micro ATXCompare specs
- ASUS P5QL-E LGA 775 (Socket T) ATX vsASUS M3N78-VM Socket AM2 micro ATXCompare specs
- ASUS P5QL-E LGA 775 (Socket T) ATX vsASUS P5Q PremiumCompare specs
- ASUS P5QL-E LGA 775 (Socket T) ATX vsMSI G31M3-F LGA 775 (Socket T) micro ATXCompare specs

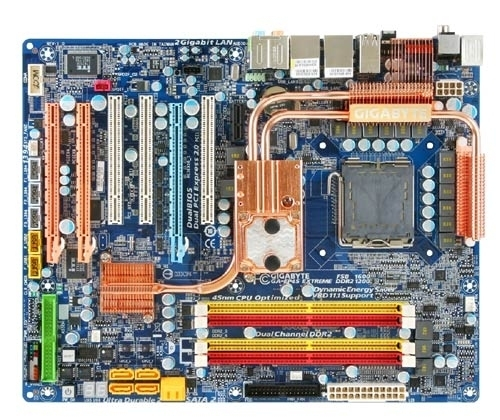

- ASUS P5QL-E LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45-EXTREME S775 P45 ATXCompare specs
