ASUS P5QC motherboard LGA 775 (Socket T) ATX
Model P5QCEAN 4719543162866
35 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors6
- Motherboard form factorATX
- PCI Express x1 slots3
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 6
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5QC
- Part numbers
- P5QC, 90-MIB4C0-G0AAY00Z, 188269, 90-MIB4C0-G0EAY00Z
- EAN / UPC
- 4719543162866, 610839162864
- Also known as
- ASUS P5QC motherboard LGA 775 (Socket T) ATX
Specifications
35 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
ASUS P5QC motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how ASUS P5QC motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5QC motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsASUS Placa Base P5LD2-X/1333 + Windows Vista Home Premium EditionCompare specs

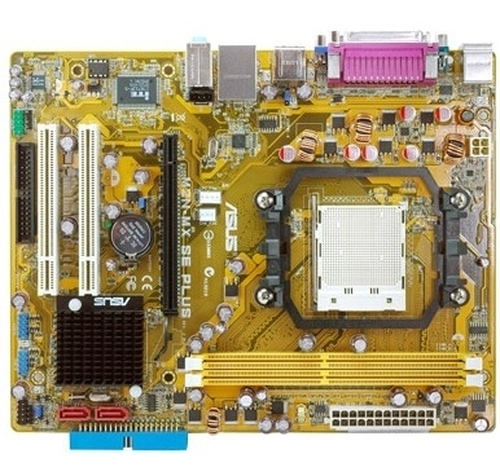

- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsASUS Placa Base M2N-MX SE Plus + Windows Vista Home Premium EditionCompare specs
- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsASUS P5Q3 Deluxe/WiFi-AP @nCompare specs
- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsASUS P5Q DeluxeCompare specs

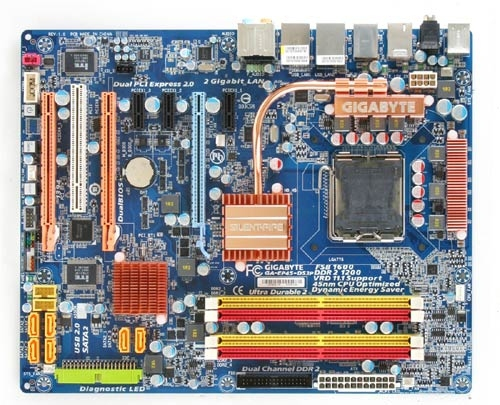

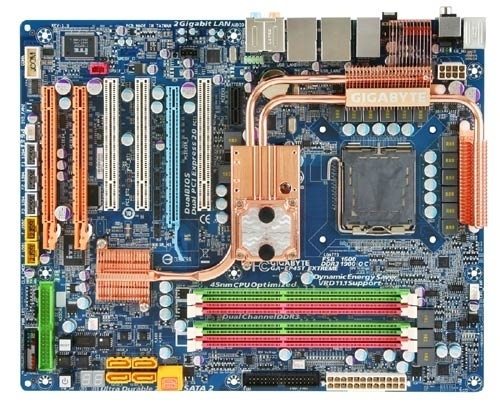

- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45T-EXTREME motherboard LGA 775 (Socket T) ATXCompare specs

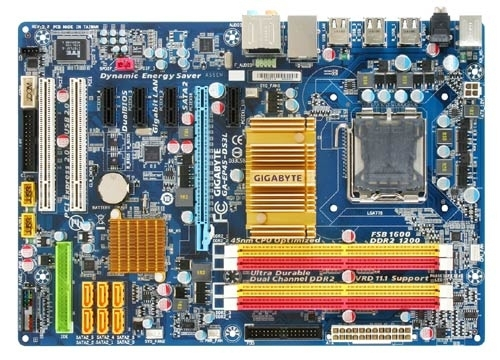

- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45-DS3L ATX LGA775 1600DDRIICompare specs

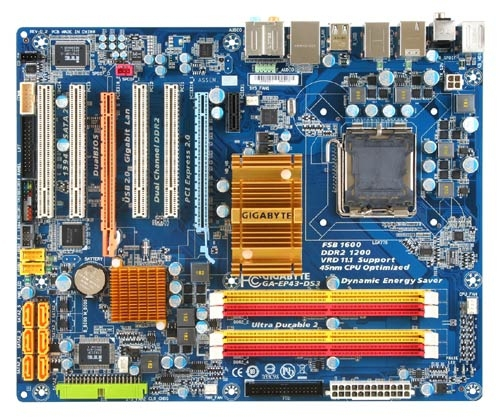

- ASUS P5QC motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP43-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
