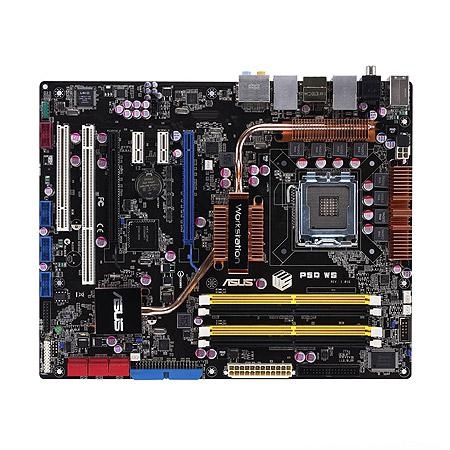

ASUS P5Q WS
Model P5Q WSEAN 610839162819
44 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors6
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 6
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5Q WS
- Part numbers
- P5Q WS, 90-MIB540-G0EAY00Z
- EAN / UPC
- 610839162819, 4719543162811
- Also known as
- ASUS P5Q WS motherboard LGA 775 (Socket T) ATX
Specifications
44 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Dual Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | RealTek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
| PCI-X slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | - ASUS PC Probe II - ASUS AI Suite - Anti-virus software (OEM version) - ASUS Update - ASUS AI Booster - Adobe Acrobat Reader - Microsoft Direct X ver 9.0C |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Manageability features | WOL/WOR by PME,WOR by PME, AI NET2 BIOS |
What people say
Reviews & ratings
ASUS P5Q WS
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5Q WS

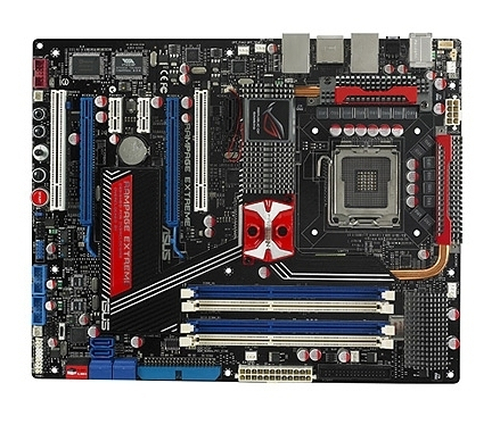

All motherboard comparisons- ASUS P5Q WS vsASUS Rampage ExtremeCompare specs

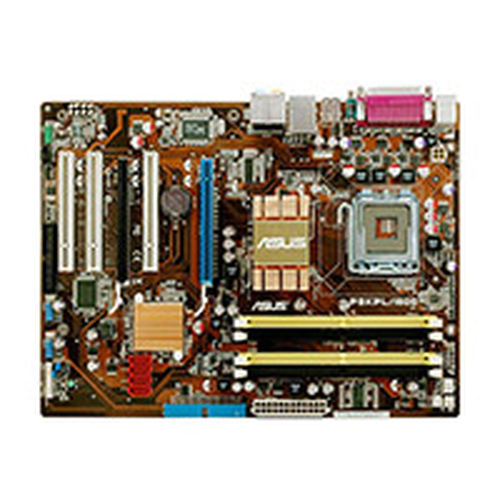

- ASUS P5Q WS vsASUS P5KPL/1600 LGA 775 (Socket T) ATXCompare specs
- ASUS P5Q WS vsASUS P5QL-EM motherboard LGA 775 (Socket T) micro ATXCompare specs
- ASUS P5Q WS vsASUS M3N78 PROCompare specs

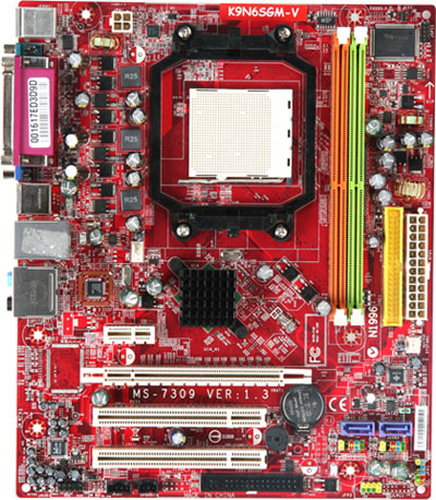

- ASUS P5Q WS vsMSI K9N6PGM2-V Socket AM2 micro ATXCompare specs
