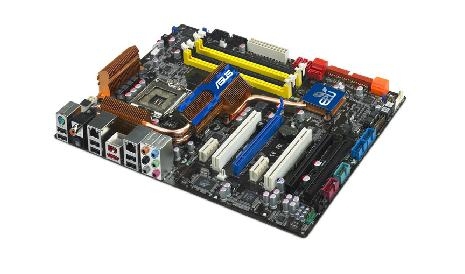

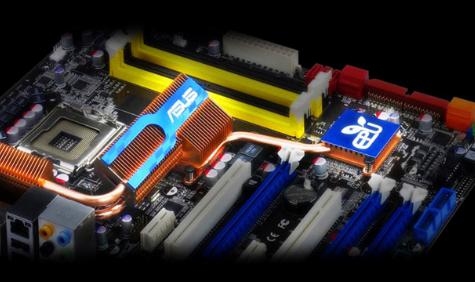

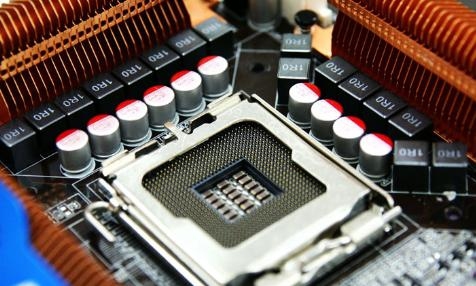

ASUS P5Q Deluxe
Model P5Q DeluxePart no. P5QDELUXEEAN 610839162574
30 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors6
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 6
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5Q Deluxe
- Part numbers
- P5QDELUXE, 90-MIB4G0-G0EAY00T, 90-MIB4GO-G0EAY00Z, 90-MIB4G0-G0AAY00Z, 90-MIB4G0-G0AAY00T, P5Q-DELUXE +1 more
- EAN / UPC
- 610839162574, 4719543162576
- Also known as
- ASUS P5Q Deluxe LGA 775 (Socket T) ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 2.0 x16 2 x PCI Express x1 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 224 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
ASUS P5Q Deluxe
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5Q Deluxe
All motherboard comparisons- ASUS P5Q Deluxe vsASUS P5Q3 Deluxe/WiFi-AP @nCompare specs
- ASUS P5Q Deluxe vsASUS P5QC motherboard LGA 775 (Socket T) ATXCompare specs
- ASUS P5Q Deluxe vsASUS P5Q ProCompare specs

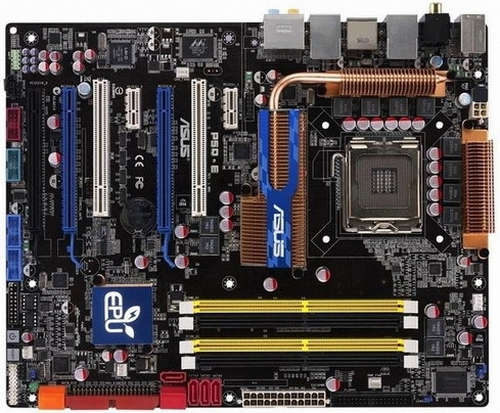

- ASUS P5Q Deluxe vsASUS P5Q-E LGA 775 (Socket T) ATXCompare specs
- ASUS P5Q Deluxe vsGIGABYTE GA-EP45-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
- ASUS P5Q Deluxe vsGIGABYTE GA-EP45-DQ6 motherboard LGA 775 (Socket T) ATXCompare specs

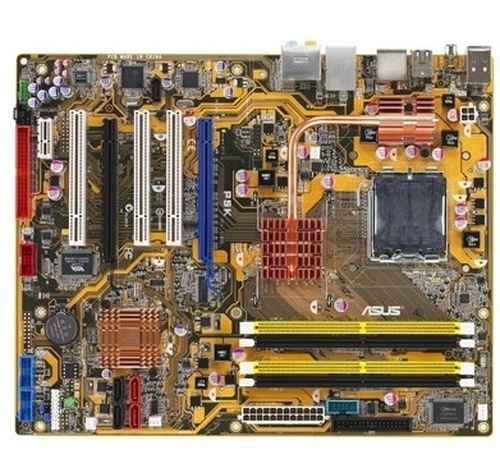

- ASUS P5Q Deluxe vsMSI P5K LGA 775 (Socket T) ATXCompare specs

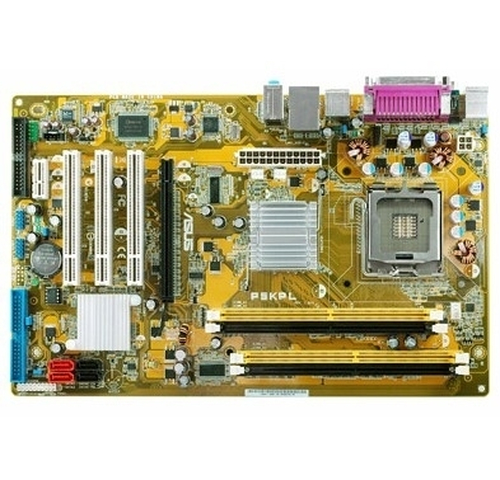

- ASUS P5Q Deluxe vsMSI P5KPL GREENCompare specs
