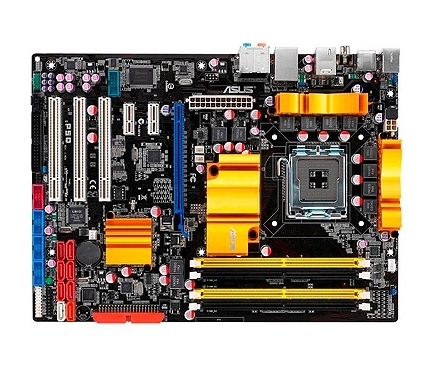

ASUS P5Q LGA 775 (Socket T) ATX
Model P5QPart no. 90-MIB4P0-G0EAY00ZEAN 4719543163016
26 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors6
- Networking featuresPCIe Gb LAN
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 6
- Networking features
- PCIe Gb LAN
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5Q
- Part numbers
- 90-MIB4P0-G0EAY00Z, 90-MIB4P0-G0AAY00Z, 90-MIM4P0-G0EAY00Z, P5Q
- EAN / UPC
- 4719543163016, 610839163014
- Also known as
- ASUS P5Q LGA 775 (Socket T) ATX
Specifications
26 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | PCIe Gb LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 2.0 x16 2 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
