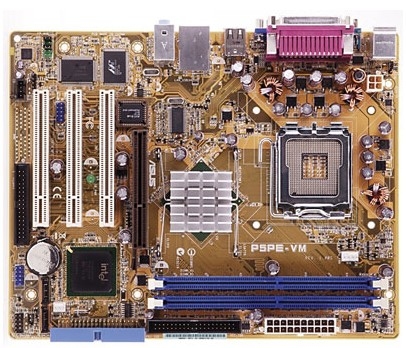

ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX
Model P5PE-VMEAN 610839139521
32 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerMarvell 88E8001
- Motherboard form factormicro ATX
- Expansion slots1x AGP 8X 3x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Marvell 88E8001
- Motherboard form factor
- micro ATX
- Expansion slots
- 1x AGP 8X 3x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5PE-VM
- Part numbers
- P5PE-VM, P5PE-VM?REFURB
- EAN / UPC
- 610839139521, 4719543139523
- Also known as
- ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX
Specifications
32 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8001 |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | ADI AD1888 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x AGP 8X 3x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 193 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Serial ATA |
| Controller interface type | UltraDMA 100/66/33 |
| Graphics controller | Intel Extreme Graphics 2 |
| Special features | ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R. |
What people say
Reviews & ratings
ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX vsASUS M2V-TVM motherboard Socket AM2 micro ATXCompare specs

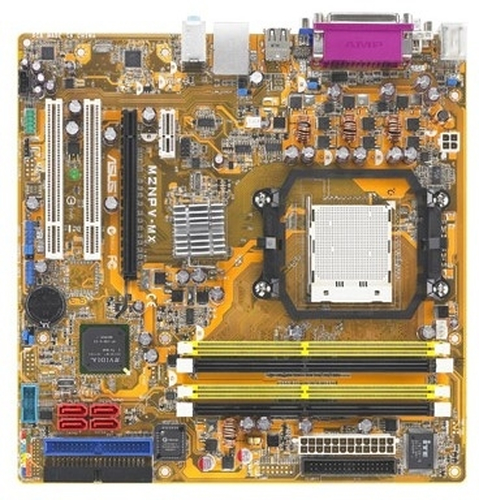

- ASUS P5PE-VM motherboard LGA 775 (Socket T) micro ATX vsASUS M2NPV-MX motherboard Socket AM2 micro ATXCompare specs
