ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX
Model P5P800-VMEAN 4719543136782
31 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Networking featuresRealtek 8100C 10/100 LAN
- Motherboard form factormicro ATX
- Expansion slots1 x AGP 8X 3 x PCI
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Networking features
- Realtek 8100C 10/100 LAN
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x AGP 8X 3 x PCI
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5P800-VM
- Part numbers
- P5P800-VM, 90-MBB490-G0EAYKZ, 90-MBB490-G0EAYZ
- EAN / UPC
- 4719543136782
- Also known as
- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX
Specifications
31 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8100C 10/100 LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe I Anti-virus software (OEM) ASUS LiveUpdate Utility |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC655 6-Ch CODEC |
| Graphics controller | Intel Extreme Graphics 2 |
What people say
Reviews & ratings
ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsASUS K8N4-E SECompare specs
- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsASUS N4L-VM DHCompare specs
- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsASUS NCL-D Intel® E7520 Socket 604 (mPGA604) Extended ATXCompare specs
- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsASUS K8N-LR motherboard Socket 754 ATXCompare specs

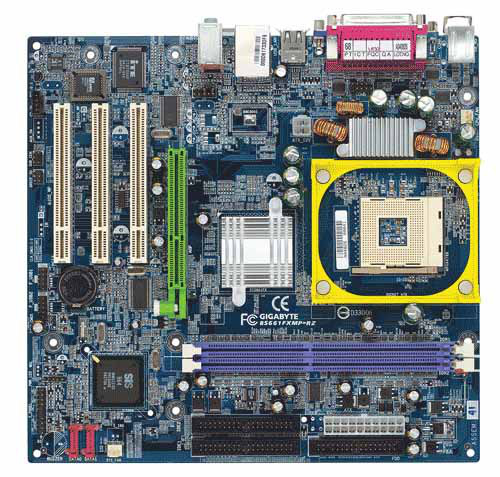

- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE 8S661FXMP-RZ motherboard Socket 478 micro ATXCompare specs

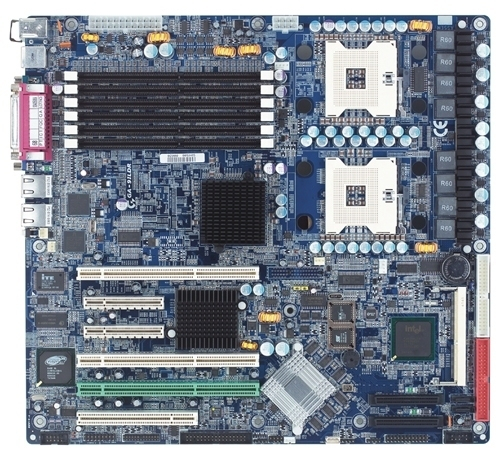

- ASUS P5P800-VM motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-9ILDR (Server / Workstation Board)Compare specs
