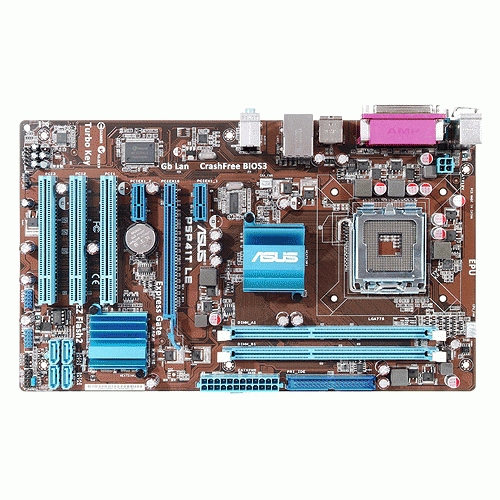

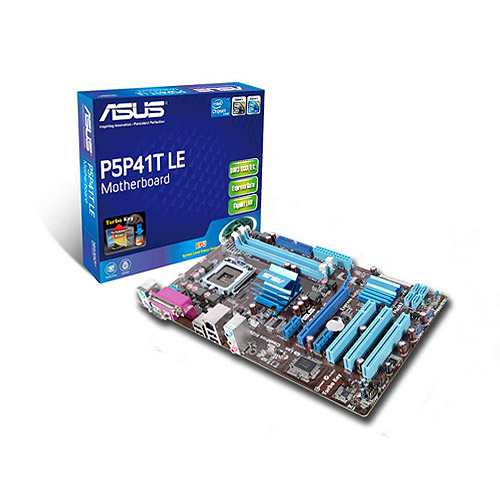

ASUS P5P41T LE
Model P5P41T LEEAN 4719543172797
43 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- BIOS typeAMI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- BIOS type
- AMI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5P41T LE
- Part numbers
- P5P41T LE, 90-MIBB00-G0EAY00Z, 90-MIBB00-G0EAY
- EAN / UPC
- 4719543172797
- Also known as
- ASUS P5P41T LE motherboard LGA 775 (Socket T) ATX
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

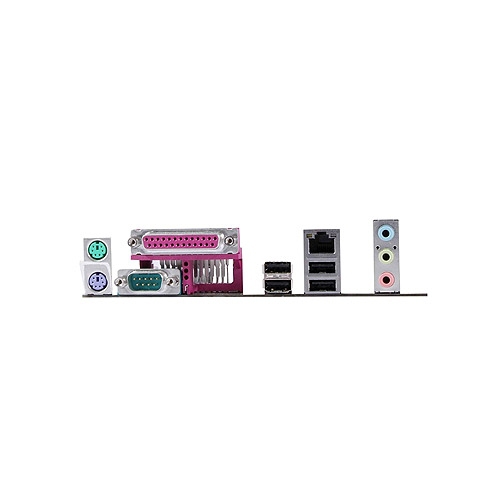

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 183 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | SATA 3 Gb/s |
What people say
Reviews & ratings
ASUS P5P41T LE
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5P41T LE
All motherboard comparisons- ASUS P5P41T LE vsASUS M4A78LT-M LECompare specs
- ASUS P5P41T LE vsASUS P7P55-M motherboard Intel® P55 LGA 1156 (Socket H) micro ATXCompare specs

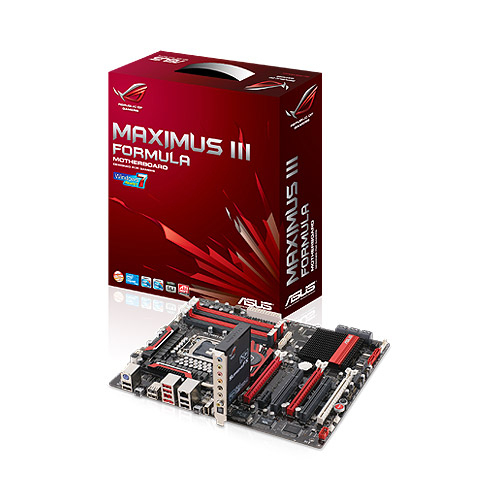

- ASUS P5P41T LE vsASUS Maximus III FormulaCompare specs

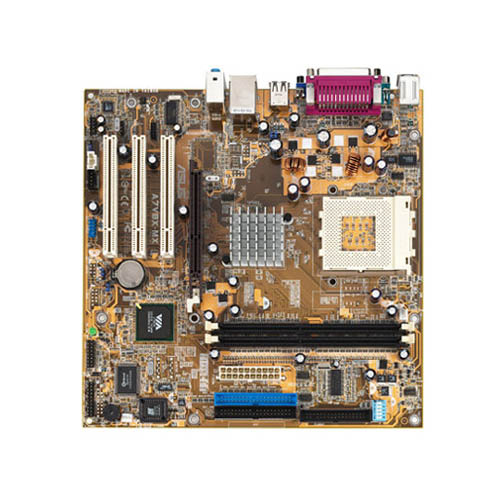

- ASUS P5P41T LE vsASUS A7V8X-MX motherboard Socket A (462) micro ATXCompare specs
- ASUS P5P41T LE vsGIGABYTE GA-7VKML motherboard Socket A (462) micro ATXCompare specs

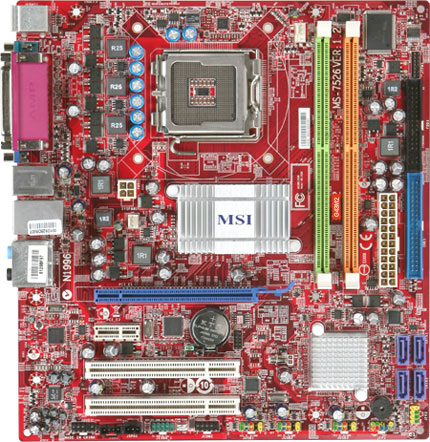

- ASUS P5P41T LE vsMSI G41TM-P33 motherboard LGA 775 (Socket T) micro ATXCompare specs
- ASUS P5P41T LE vsMSI G43M2-F LGA 775 (Socket T) micro ATXCompare specs

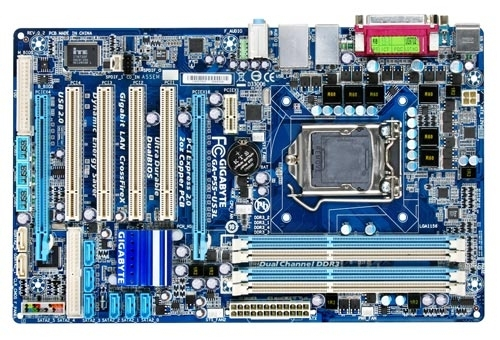

- ASUS P5P41T LE vsGIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATXCompare specs
