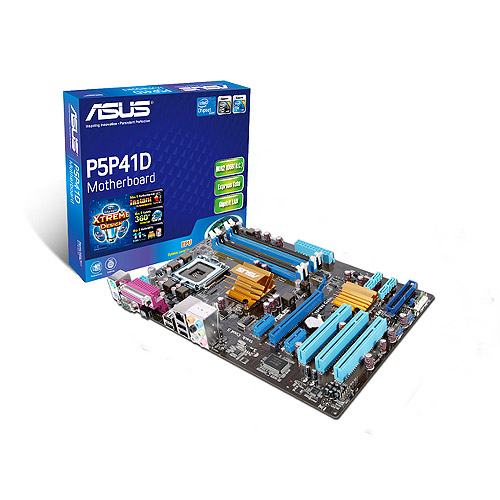

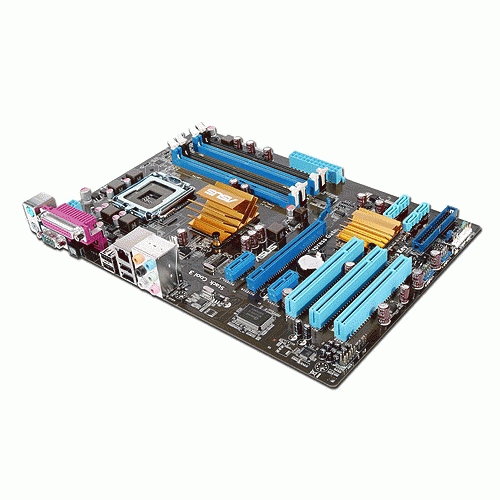

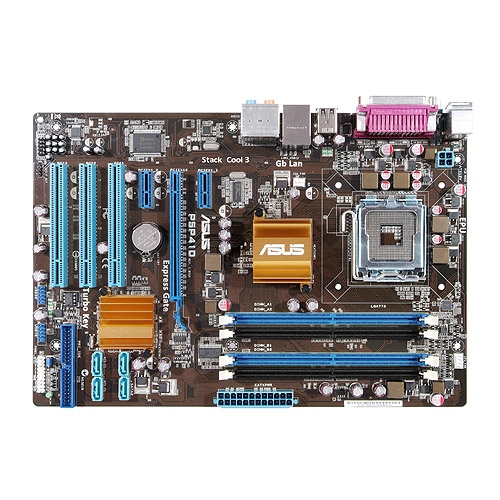

ASUS P5P41D LGA 775 (Socket T) ATX
Model P5P41DPart no. 90-MIBAK0-G0EAY00ZEAN 4719543172001
44 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- BIOS typeAMI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- BIOS type
- AMI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5P41D
- Part numbers
- 90-MIBAK0-G0EAY00Z, P5P41D, 90-MIBAK0-G0EAY0GZ
- EAN / UPC
- 4719543172001, 5052178859152
- Also known as
- ASUS P5P41D LGA 775 (Socket T) ATX
Specifications
44 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

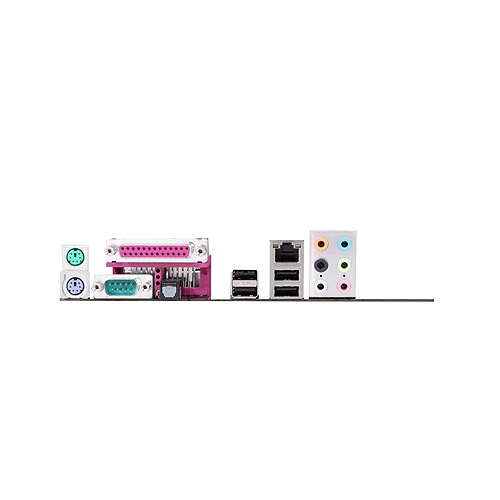

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 208 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | SATA 3 Gb/s |
What people say
Reviews & ratings
ASUS P5P41D LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how ASUS P5P41D LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5P41D LGA 775 (Socket T) ATX
All motherboard comparisons- ASUS P5P41D LGA 775 (Socket T) ATX vsASUS M4A79XTD EVOCompare specs
- ASUS P5P41D LGA 775 (Socket T) ATX vsASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATXCompare specs

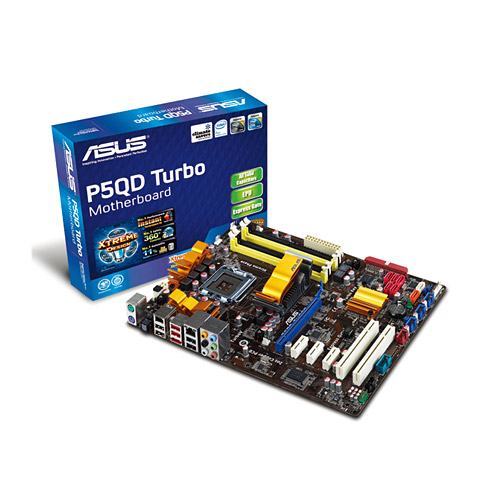

- ASUS P5P41D LGA 775 (Socket T) ATX vsASUS P5QD TurboCompare specs

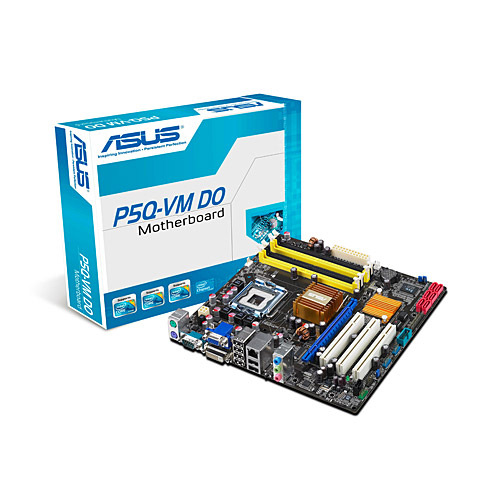

- ASUS P5P41D LGA 775 (Socket T) ATX vsASUS P5Q-VM DOCompare specs

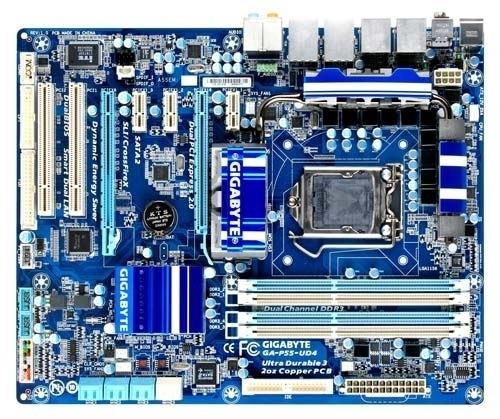

- ASUS P5P41D LGA 775 (Socket T) ATX vsGIGABYTE P55-UD4 Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- ASUS P5P41D LGA 775 (Socket T) ATX vsGIGABYTE P55-UD3 Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- ASUS P5P41D LGA 775 (Socket T) ATX vsMSI 785GM-E51 AMDCompare specs

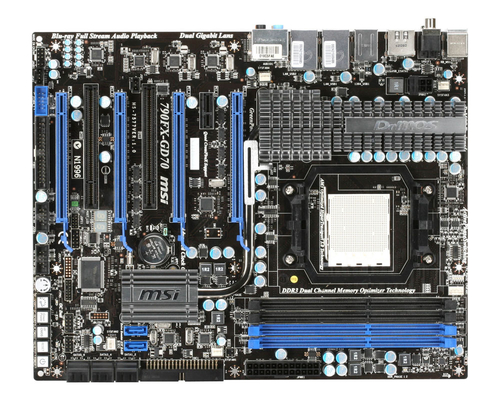

- ASUS P5P41D LGA 775 (Socket T) ATX vsMSI 790FX-GD70 Winki EditionCompare specs
