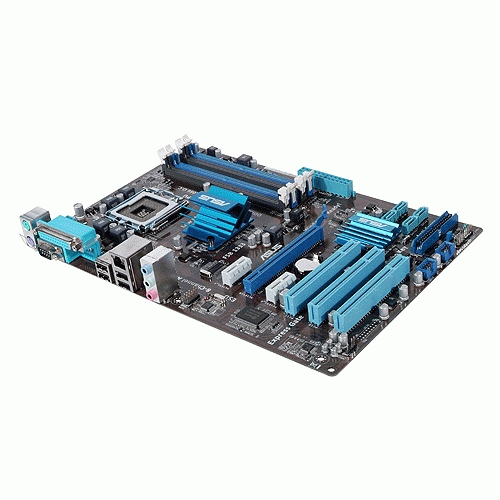

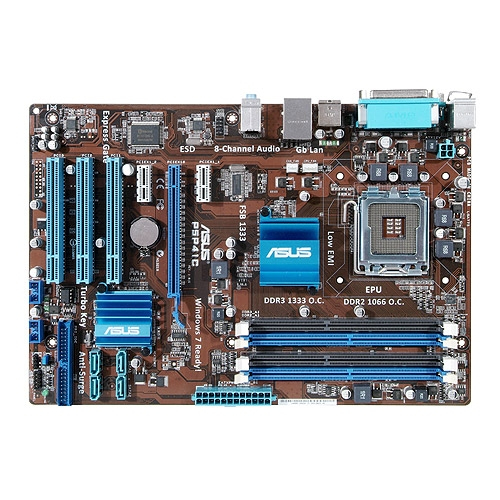

ASUS P5P41C LGA 775 (Socket T) ATX
Model P5P41CPart no. 90-MIBCQ0-G0EAY00ZEAN 4719543175347
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Networking features10/100/1000 Mbps
- Motherboard form factorATX
- BIOS typeAMI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- 10/100/1000 Mbps
- Motherboard form factor
- ATX
- BIOS type
- AMI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5P41C
- Part numbers
- 90-MIBCQ0-G0EAY00Z, P5P41C, 90-MIBCQ0-G0EAY0GZ
- EAN / UPC
- 4719543175347
- Also known as
- ASUS P5P41C LGA 775 (Socket T) ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |

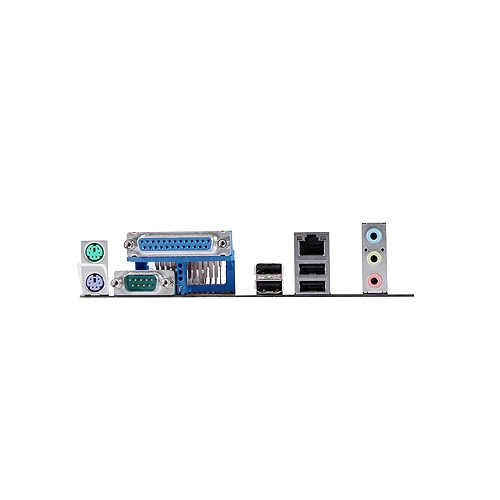

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 208 mm |
Other features
| Specification | Value |
|---|---|
| Manageability features | WOL, PXE, WOR by Ring, PME Wake Up |
