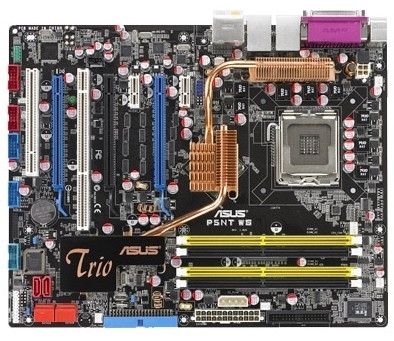

ASUS P5NT WS
Model P5NT WSPart no. 90-MBB5L0-G0EAY00ZEAN 610839149230
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors3
- Networking featuresDual Gigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 3
- Networking features
- Dual Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5NT WS
- Part numbers
- 90-MBB5L0-G0EAY00Z, P5NT WS
- EAN / UPC
- 610839149230, 4719543149232
- Also known as
- ASUS P5NT WS LGA 775 (Socket T) ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | RealTek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | AI NOS ASUS AI Booster ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3x PCI Express x16 1x PCI-X 2x PCI Express x1 1x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS Update ASUS AI Booster NVIDIA MediaShield RAID Anti Virus (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66/33 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Special features | ASUS EZ DIY ASUS MyLogo2 ASUS Q-Fan 2 |
| Manageability features | WOL by PME, WOR by PME, PXE |
