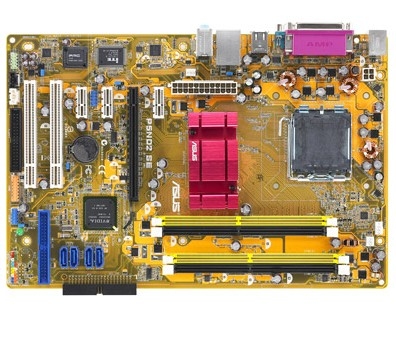

ASUS P5ND2 SE
Model P5ND2 SEEAN 610839142132
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- Expansion slots1x PCI-E x16 3x PCI-E x1 2x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- Expansion slots
- 1x PCI-E x16 3x PCI-E x1 2x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5ND2 SE
- Part numbers
- P5ND2 SE, 90-MBB2R5-G0UAYZ, 90-MBB2R5-G0EAYZ
- EAN / UPC
- 610839142132, 4719543142134
- Also known as
- ASUS P5ND2 SE motherboard LGA 775 (Socket T) ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 3x PCI-E x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS AI Booster ASUS LiveUpdate Anti-Virus (OEM) RAID Drivers |
Other features
| Specification | Value |
|---|---|
| GAME/MIDI connector | Yes |
| Special features | ASUS Q-Fan ASUS MyLogo2 |
| Manageability features | WOL by PME,WOR by ring, WOW |
