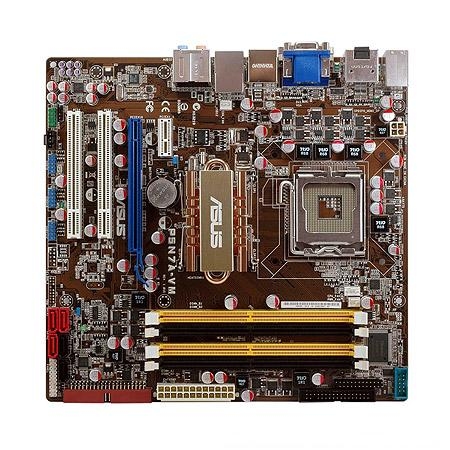

ASUS P5N7A-VM LGA 775 (Socket T) micro ATX
Model P5N7A-VMPart no. 90-MIB5F0-G0EAY00ZEAN 4719543163566
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5N7A-VM
- Part numbers
- 90-MIB5F0-G0EAY00Z, P5N7A-VM, 90-MIB5F0-G-EAY00Z
- EAN / UPC
- 4719543163566, 610839163564
- Also known as
- ASUS P5N7A-VM LGA 775 (Socket T) micro ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

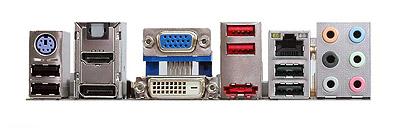

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 234 mm |
Other features
| Specification | Value |
|---|---|
| Graphics controller | GeForce 9300 |
