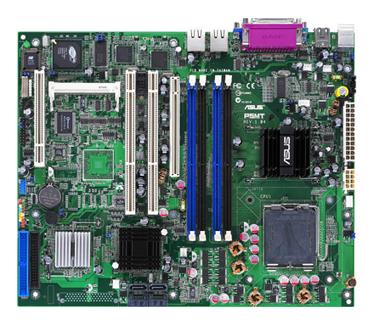

ASUS P5MT Server Motherboard
Model P5MT Server MotherboardPart no. P5MT
11 specifications
- Processor manufacturerIntel
- Maximum internal memory8 GB
- Motherboard form factorATX
- Storage temperature (T-T)-40 - 70 °C
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 8 GB
- Motherboard form factor
- ATX
- Storage temperature (T-T)
- -40 - 70 °C
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5MT Server Motherboard
- Part number
- P5MT
- Also known as
- ASUS P5MT Server Motherboard LGA 775 (Socket T) ATX
Specifications
11 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 1066 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Compatible operating systems | Windows 2000 Server w/SP4, Windows 2000 Advanced Server w/SP4, Windows 2003 Standard SP1 32bit/64bit, Windows 2003 Enterprise SP1 32bit/64bit, Red Hat Enterprise AS 3.0 UP3/UP4/UP5, Red Hat Enterprise AS 4.0, SuSE Enterprise Server 9.0, SuSE Enterprise Server 9.0 w/SP1, SuSE Enterprise Server 9.2, F |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-E x16 (x8 link), 2 x PCI-X 64 bit 133/100 MHz, 1 x PCI 33MHz/32 bits/5V, Mini-PCI Socket for ASMB2 Card |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| I/O ports | 2 x Broadcom BCM5721 Gb PCI-E LAN, ATI RageXL / 8M |
