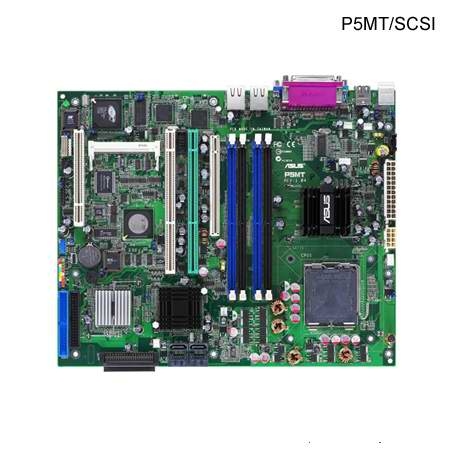

ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX
Model P5MT-SEAN 610839137824
47 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1
- Maximum graphics card memory8 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5MT-S
- Part number
- P5MT-S
- EAN / UPC
- 610839137824
- Also known as
- ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | No |
| Front panel audio connector | No |
| CD/AUX audio in | No |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 0 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | No |
| Chassis intrusion connector | No |
| Number of COM connectors | No |
| Number of IEEE1394 connectors | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 3 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 0 |
| Microphone in | No |
| S/PDIF out port | No |
| Parallel ports quantity | 0 |
| Serial ports quantity | 2 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x Broadcom BCM5721 Gb PCI-E LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® E7230 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | -1 x PCI-E x16 slot (x8 link) -2 x PCI-X 64 bit 100/66 MHz -1 x PCI 33MHz/32 bits/5V Mini-PCI Socket for ASMB2 Card |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 248.9 mm |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | No |
| EZ plug connector | No |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
| Graphics controller | ATI RAGE-XL PCI Display |
| I/O ports | 1 x MiniPCI Socket 1 x PCI-E [x16 ] |
| Manageability features | ASWM 2.0 |
