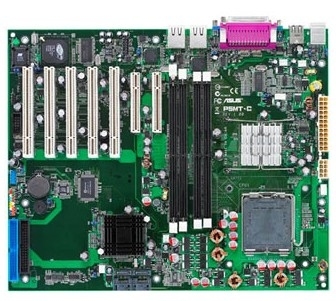

ASUS P5MT-C motherboard Intel® E7230 LGA 775 (Socket T) micro ATX
Model P5MT-CEAN 610839137473
27 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1
- Maximum graphics card memory8 MB
- USB 2.0 ports quantity2
- LAN controllerBroadcom BCM5721
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- Maximum graphics card memory
- 8 MB
- USB 2.0 ports quantity
- 2
- LAN controller
- Broadcom BCM5721
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5MT-C
- Part numbers
- P5MT-C, 90-MSVA90-G0UAYZ
- EAN / UPC
- 610839137473
- Also known as
- ASUS P5MT-C motherboard Intel® E7230 LGA 775 (Socket T) micro ATX
Specifications
27 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
| Graphics card | Rage XL |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
| Networking features | Dual Gigabit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® E7230 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI-E x8 5x 32-bit/33MHz PCI |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Serial ATA II |
| Controller interface type | UltraATA 33 / 66 / 100 |
| Floppy disk drive connector | Yes |
| Manageability features | ASWM 2.0 |
