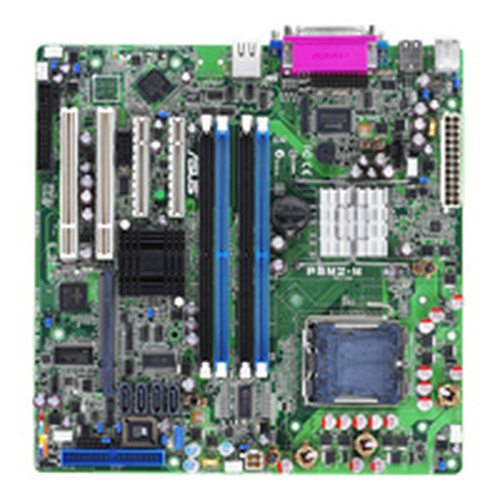

ASUS P5M2/SAS motherboard Intel® 3000 LGA 775 (Socket T) ATX
Model P5M2/SASEAN 610839146062
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, 1E
- Maximum graphics card memory32 MB
- USB 2.0 ports quantity2
- LAN controllerBroadcom BCM5721
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 1E
- Maximum graphics card memory
- 32 MB
- USB 2.0 ports quantity
- 2
- LAN controller
- Broadcom BCM5721
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5M2/SAS
- Part numbers
- P5M2/SAS, 90-MSVAV5-G0UAY00T, 90-MSVAVS-G0UAY00Y
- EAN / UPC
- 610839146062, 4719543146064
- Also known as
- ASUS P5M2/SAS motherboard Intel® 3000 LGA 775 (Socket T) ATX
Specifications
28 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 1E |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
| Graphics card | ES1000 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3000 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI 32bit/ 33MHz 2 x PCI-X 133 / 100MHz 1 x PCI-E x16 (x 8) 1 x SODIMM (ASMB3-SOL) |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | LSI 1068 (SAS) |
| Controller interface type | Intel ICH7R (IDE/SATA) |
| Floppy disk drive connector | Yes |
| RAID controller type | Intel Matrix Storage/SAS |
