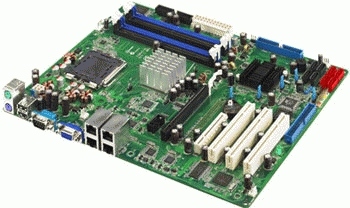

ASUS P5M2-E/4L motherboard Intel® 3000 LGA 775 (Socket T) ATX
Model P5M2-E/4L
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1
- Maximum graphics card memory32 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Maximum graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5M2-E/4L
- Part number
- P5M2-E/4L
- Also known as
- ASUS P5M2-E/4L motherboard Intel® 3000 LGA 775 (Socket T) ATX
Specifications
28 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Duo |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
| Controller type | Intel 3000 |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 2 |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3000 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3 * PCI 32bit/ 33MHz 1 * PCI-E x8 1 * PCI-E x16 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Controller interface type | IDE/SATA Intel ICH7R |
| Floppy disk drive connector | Yes |
| Graphics controller | XGI Z7 |
| Manageability features | ASWM 2.0 |
| RAID controller type | Marvell 6145 |
