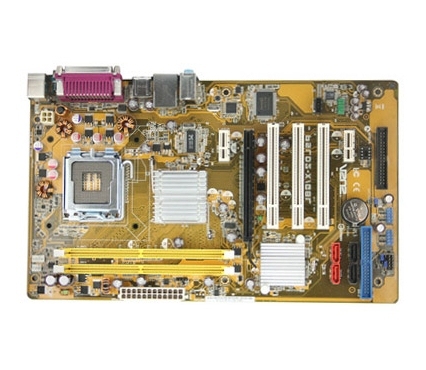

ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX
Model P5LD2-X/GBL
26 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors4
- Motherboard form factorATX
- Expansion slots1 x PCIe x16 2 x PCIe x1 3 x PCI
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 4
- Motherboard form factor
- ATX
- Expansion slots
- 1 x PCIe x16 2 x PCIe x1 3 x PCI
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5LD2-X/GBL
- Part number
- P5LD2-X/GBL
- Also known as
- ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX
Specifications
26 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista, Windows XP, Windows 2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCIe x16 2 x PCIe x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 183 mm |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | 1 |
