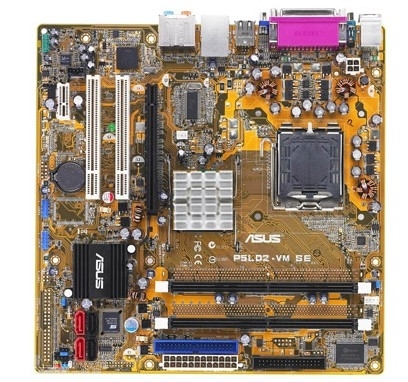

ASUS P5LD2-VM SE
Model P5LD2-VM SEEAN 4719543141564
37 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Graphics cardGMA 950
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Graphics card
- GMA 950
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5LD2-VM SE
- Part number
- P5LD2-VM SE
- EAN / UPC
- 4719543141564
- Also known as
- ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX
Specifications
37 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC882 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS Update Anti-Virus software |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | Serial ATA 300/150 |
| Floppy disk drive connector | Yes |
| Special features | ASUS CrashFree BIOS 2 ASUS C.P.R. ASUS Q-Fan ASUS EZ Flash ASUS MyLogo |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
