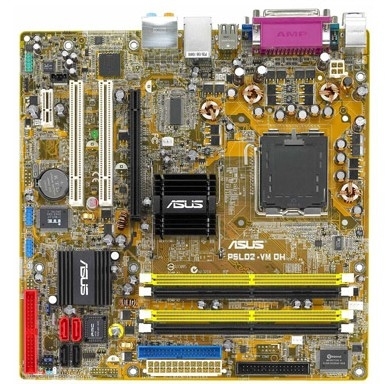

ASUS P5LD2-VM DH
Model P5LD2-VM DHPart no. P5LD2-VM DH/CEAN 4719543137222
40 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Graphics cardGMA 950
- USB 2.0 connectors2
- LAN controllerIntel® 82573L
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Graphics card
- GMA 950
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82573L
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5LD2-VM DH
- Part numbers
- P5LD2-VM DH/C, P5LD2-VM DH/C?REFURB, P5LD2-VM DH, 90-MBB1TA-G0EAYGZ
- EAN / UPC
- 4719543137222, 610839140442, 4719543140444
- Also known as
- ASUS P5LD2-VM DH motherboard LGA 775 (Socket T) micro ATX
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82573L |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC882 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II Anti-Virus Software (trial) ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | ITE IDE (Ultra-ATA 133/100) |
| Controller interface type | Intel ICH7 DH South Bridge |
| Special features | ASUS C.P.R. ASUS EZ Flash ASUS CrashFree BIOS 2 MyLogo ASUS Q-Fan |
| Manageability features | WOR by Ring, WOL/WOR by PME, WO USB, WO KB/MS,PXE, RPL |
