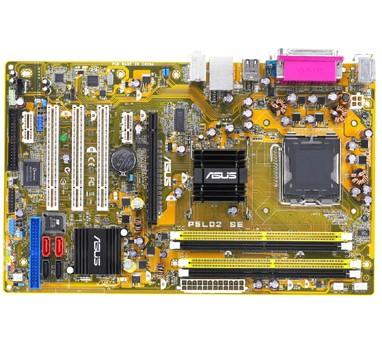

ASUS P5LD2 SE Motherboard
Model P5LD2 SE MotherboardPart no. P5LD2 SEEAN 4719543134597
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factorATX
- Expansion slots1x PCI-E x16 2x PCI-E x1 3x PCI
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- ATX
- Expansion slots
- 1x PCI-E x16 2x PCI-E x1 3x PCI
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5LD2 SE Motherboard
- Part numbers
- P5LD2 SE, P5LD2 SE/C, 90-MBB1AX-G0EAY1Z
- EAN / UPC
- 4719543134597, 4719543135341
- Also known as
- ASUS P5LD2 SE Motherboard LGA 775 (Socket T) ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
| Flash memory | 4 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | No |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | RTL8111B PCI-E Gigabit LAN controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 2x PCI-E x1 3x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Anti-Virus Software |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Manageability features | WOL by PME, WOR by PME |
