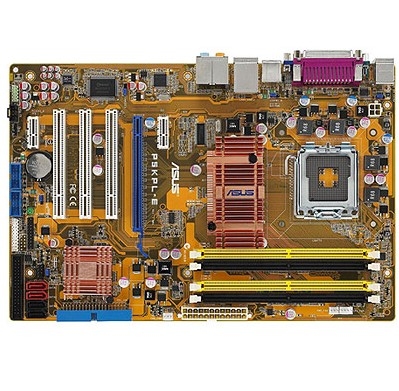

ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX
Model P5KPL-EEAN 4719543157473
38 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Graphics cardGMA 3100
- USB 2.0 connectors2
- Ethernet LAN (RJ-45) ports1
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Graphics card
- GMA 3100
- USB 2.0 connectors
- 2
- Ethernet LAN (RJ-45) ports
- 1
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5KPL-E
- Part numbers
- P5KPL-E, 90-MBB7S0-G0EAY0KZ
- EAN / UPC
- 4719543157473, 610839157471
- Also known as
- ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 3100 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP/Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 203 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
