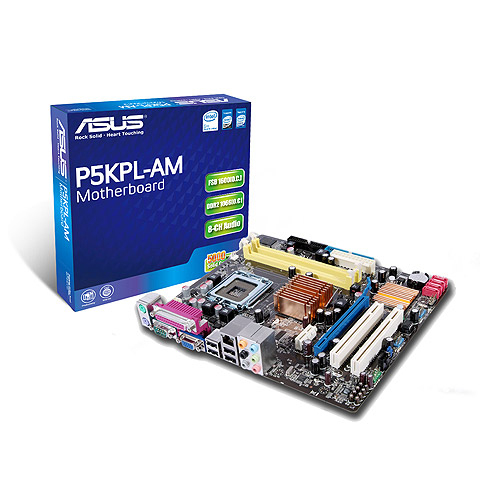

ASUS P5KPL-AM SE
Model P5KPL-AM SEPart no. 90-MIB6S0-G0EAY0KZEAN 5052178738341
45 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Graphics cardGMA 3100
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8102E(L)
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Graphics card
- GMA 3100
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8102E(L)
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5KPL-AM SE
- Part numbers
- 90-MIB6S0-G0EAY0KZ, 90-MIB6S0-G0EAY00Z, P5KPL-AM-SE
- EAN / UPC
- 5052178738341, 610839167463, 4719543167465, 5051964701088
- Also known as
- ASUS P5KPL-AM SE LGA 775 (Socket T) micro ATX
Specifications
45 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4, Intel® Pentium® D |
| Processor system buses supported | 800,1066,1333,1600 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 3100 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8102E(L) |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 183 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | ASUS PC Probe II ASUS Update |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100 |
| Controller interface type | SATA |
| Manageability features | WOL, PXE, RPL, WOR, PME |
