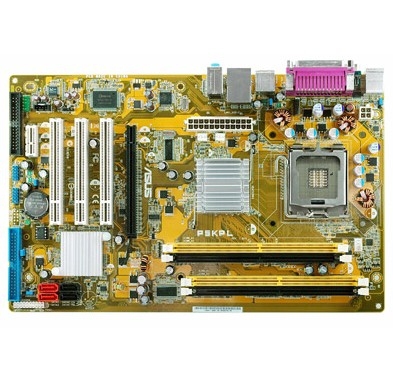

ASUS P5KPL motherboard LGA 775 (Socket T) ATX
Model P5KPLPart no. 90-MBB720-G0EAY00ZEAN 610839154784
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factorATX
- BIOS memory size64 Mbit
- Width350 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Width
- 350 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5KPL
- Part numbers
- 90-MBB720-G0EAY00Z, 90-MBB720-G0EAY0KZ, P5KPL GREEN, P5KPL <GREEN>, P5KPL
- EAN / UPC
- 610839154784, 4719543154786
- Also known as
- ASUS P5KPL motherboard LGA 775 (Socket T) ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/XP/Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express X16 1x PCI Express X1 3x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 350 mm |
| Depth | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | 1 |
| Special features | ASUS CrashFreeBIOS3 ASUS EZ Flash2 ASUS Q-Fan ASUS MyLogo2 |
| Manageability features | WOL @ PME,WOR @ PME, WOR @ Ring |
