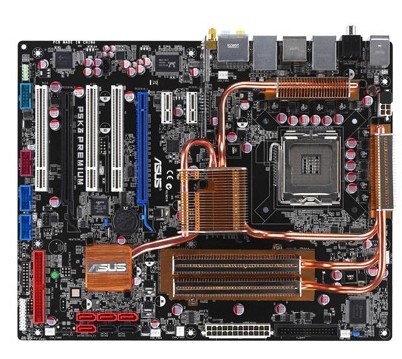

ASUS P5K3 Premium/WiFi-AP
Model P5K3 Premium/WiFi-APPart no. P5K3 PREMIUM/WIFI-APEAN 4719543153345
40 specifications
- Processor manufacturerIntel
- ECC сompatibilityNon-ECC
- USB 2.0 connectors2
- LAN controllerMarvell 88E8056
- Motherboard form factorATX
- Expansion slots2x PCI-E x16 2x PCI-E x1 3x PCI
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- Non-ECC
- USB 2.0 connectors
- 2
- LAN controller
- Marvell 88E8056
- Motherboard form factor
- ATX
- Expansion slots
- 2x PCI-E x16 2x PCI-E x1 3x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5K3 Premium/WiFi-AP
- Part numbers
- P5K3 PREMIUM/WIFI-AP, 90-MBB6E0-G0EAY00Z
- EAN / UPC
- 4719543153345
- Also known as
- ASUS P5K3 Premium/WiFi-AP LGA 775 (Socket T) ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP |
| Overclocking features | ASUS C.P.R. AI NOS |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI-E x16 2x PCI-E x1 3x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | - ASUS WiFi-AP Solo - ASUS AI Gear2 - ASUS AI Nap - ASUS Stack Cool 2 - ASUS Q-Fan 2 - ASUS Q-Connector - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 3 |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
