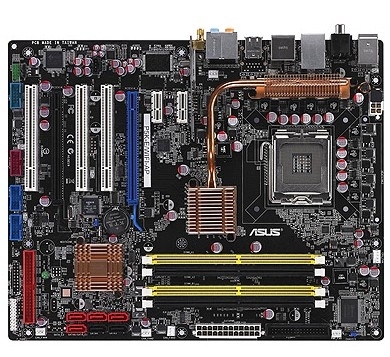

ASUS P5K-E/WIFI-AP LGA 775 (Socket T) ATX
Model P5K-E/WIFI-APPart no. 90-MBB6U1-G0EAY00ZEAN 610839152599
43 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, JBOD
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- LAN controllerMarvell 88E8056
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, JBOD
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- LAN controller
- Marvell 88E8056
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5K-E/WIFI-AP
- Part numbers
- 90-MBB6U1-G0EAY00Z, P5K-E WIFI-AP, 90-MBB6U1-G0EAY0OZ
- EAN / UPC
- 610839152599, 4719543152591
- Also known as
- ASUS P5K-E/WIFI-AP LGA 775 (Socket T) ATX
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | JMicron JMB363 |
| Floppy disk drive connector | Yes |
| Special features | ASUS EZ DIY ASUS AI Lifestyle ASUS WiFi@Home ASUS MyLogo 3 |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
