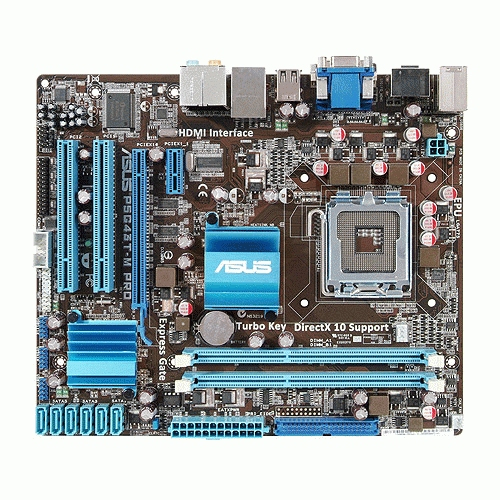

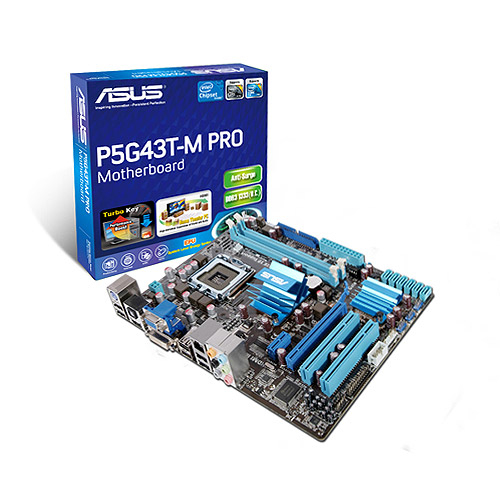

ASUS P5G43T-M PRO
Model P5G43T-M PROEAN 4719543173121
45 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory1759 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerAtheros L1E
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 1759 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Atheros L1E
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G43T-M PRO
- Part numbers
- P5G43T-M PRO, 90-MIBAZ0-G0EAY0KZ
- EAN / UPC
- 4719543173121
- Also known as
- ASUS P5G43T-M PRO motherboard LGA 775 (Socket T) micro ATX
Specifications
45 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1759 MB |
| Graphics card | GMA X4500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

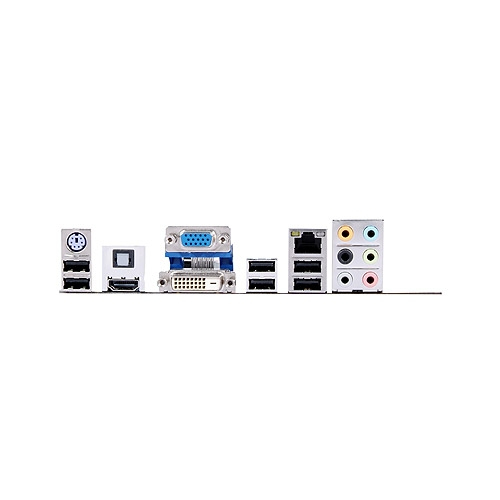

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros L1E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 209 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | SATA 3 Gb/s |
