ASUS P5G41TM-LX motherboard Intel® G41 LGA 775 (Socket T) micro ATX
Model P5G41TM-LX
58 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G41TM-LX
- Part number
- P5G41TM-LX
- Also known as
- ASUS P5G41TM-LX motherboard Intel® G41 LGA 775 (Socket T) micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium®, Intel® Pentium® Dual-Core |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 8 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | GMA X4500 |
| Maximum resolution | 2048 x 1536 pixels |
| DirectX version | 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

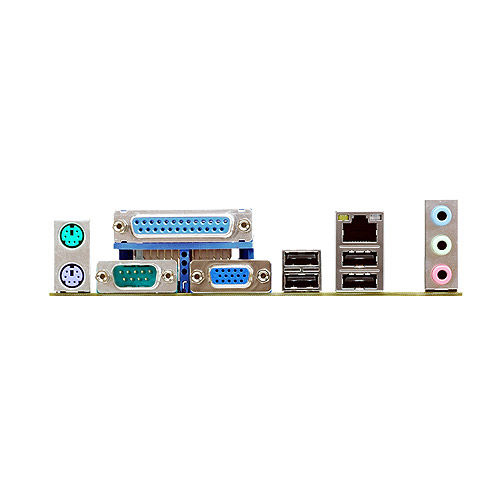

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® G41 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 8 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 201 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 2 |
