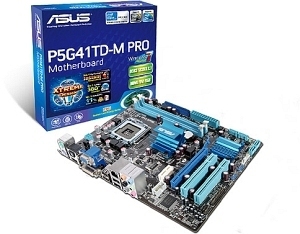

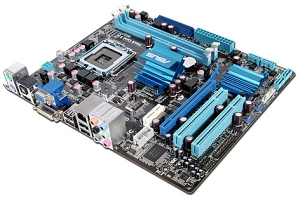

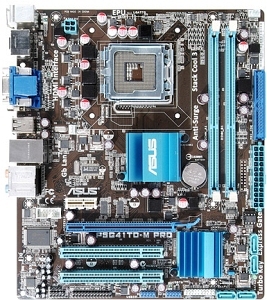

ASUS P5G41TD-M PRO
Model P5G41TD-M PROPart no. 90-MIBBM0-G0EAY00ZEAN 610839173969
50 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1
- On-board graphics cardYes
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8112L
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1
- On-board graphics card
- Yes
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8112L
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G41TD-M PRO
- Part numbers
- 90-MIBBM0-G0EAY00Z, P5G41TD-M PRO
- EAN / UPC
- 610839173969, 4719543173961
- Also known as
- ASUS P5G41TD-M PRO LGA 775 (Socket T) micro ATX
Specifications
50 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 8 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | Gigabit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Certification | RoHS |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 208.3 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | SATA |
| Graphics controller | GMA X4500 |
| Manageability features | WOL, PXE, WOR @ Ring, PME Wake Up |
What people say
Reviews & ratings
ASUS P5G41TD-M PRO
No reviews yet
Be the first to tell others how ASUS P5G41TD-M PRO works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5G41TD-M PRO
All motherboard comparisons- ASUS P5G41TD-M PRO vsASUS P7F-M Intel® 3420 LGA 1156 (Socket H) micro ATXCompare specs
- ASUS P5G41TD-M PRO vsASUS M4A77 AMD 770 Socket AM3 ATXCompare specs

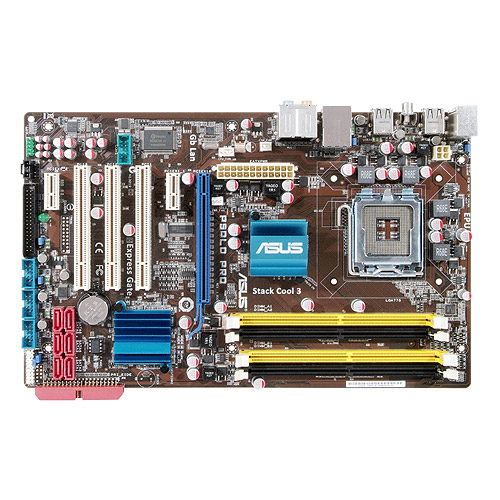

- ASUS P5G41TD-M PRO vsASUS P5QLD ProCompare specs

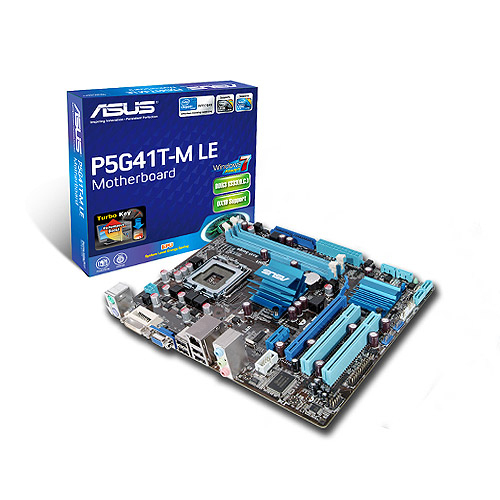

- ASUS P5G41TD-M PRO vsASUS P5G41T-M LECompare specs
- ASUS P5G41TD-M PRO vsGIGABYTE GA-5AX motherboard ATXCompare specs
- ASUS P5G41TD-M PRO vsMSI H55M-E33 motherboard LGA 1156 (Socket H) micro ATXCompare specs

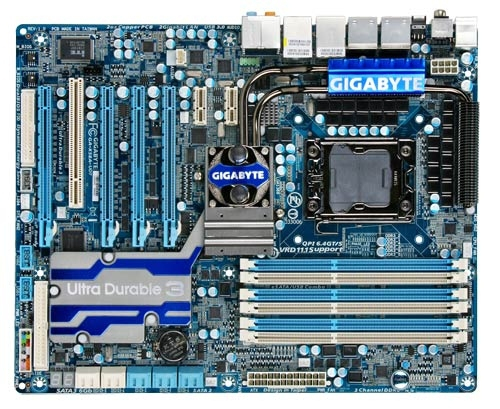

- ASUS P5G41TD-M PRO vsGIGABYTE GA-X58A-UD7 motherboard Socket B (LGA 1366) ATXCompare specs

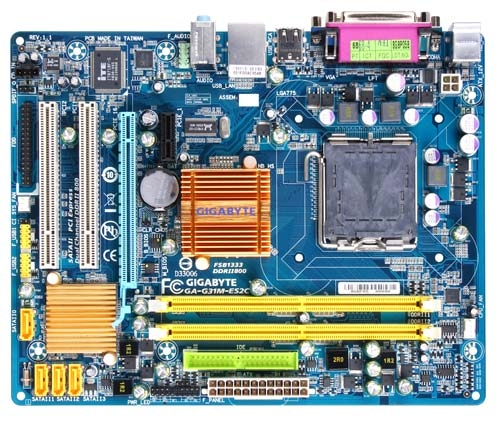

- ASUS P5G41TD-M PRO vsGIGABYTE GA-G31M-ES2C motherboard LGA 775 (Socket T) micro ATXCompare specs
