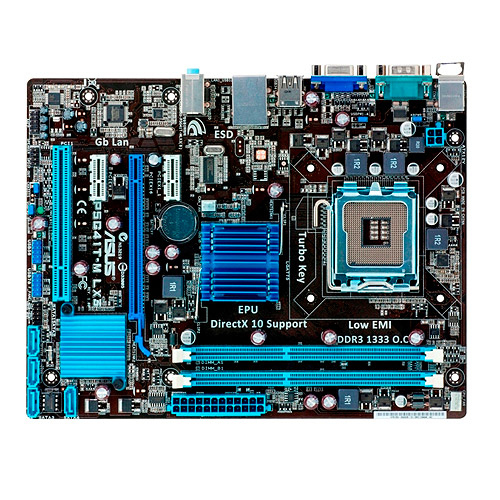

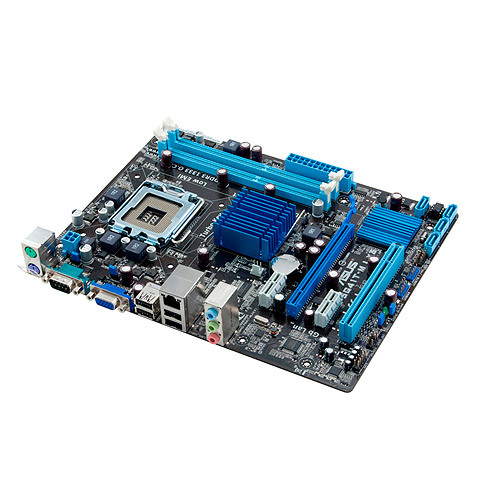

ASUS P5G41T-M LX3

ASUS P5G41T-M LX3

Model P5G41T-M LX3EAN 5711045381409

57 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Maximum graphics card memory256 MB
  • USB 2.0 connectors4
  • Ethernet interface typeGigabit Ethernet
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Maximum graphics card memory
256 MB
USB 2.0 connectors
4
Ethernet interface type
Gigabit Ethernet
Component for
PC
Brand
ASUS
Category
Motherboard
Model
P5G41T-M LX3
Part numbers
P5G41T-M LX3, 90-MIBET0-G0EAY00Z, 90-MIBET0-G0EAY0DZ
EAN / UPC
5711045381409, 610839178476, 4719543178478
Also known as
ASUS P5G41T-M LX3 motherboard Intel® G41 LGA 775 (Socket T) micro ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 775 (Socket T)
Compatible processor seriesIntel® Celeron®, Intel® Pentium® Dual-Core
Maximum number of SMP processors1
Processor system buses supported800,1066,1333 MHz
Intel Core 2 Quad seriesQ6000, Q8000, Q9000
Intel Core 2 Duo seriesE4000, E6000, E7000, E8000
Intel Pentium seriesE2000, E5000, E6000
Intel Celeron series400, E1000

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory8 GB

Graphics

Maximum graphics card memory256 MB
Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardGMA X4500

Internal I/O

USB 2.0 connectors4
Number of SATA II connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Chassis intrusion connectorYes

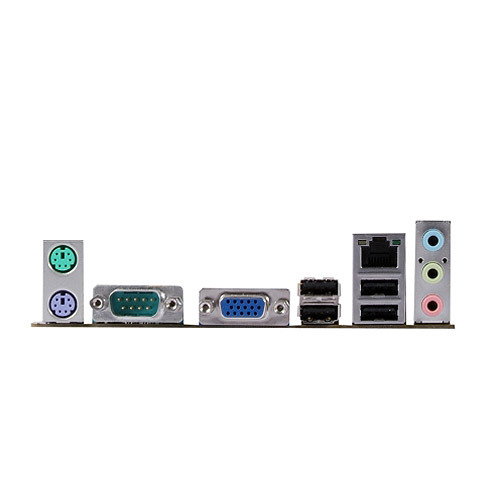

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® G41
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows OS

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI-X slots1

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0

Weight & dimensions

Width244 mm
Depth188 mm

Other features

Quick installation guideYes
