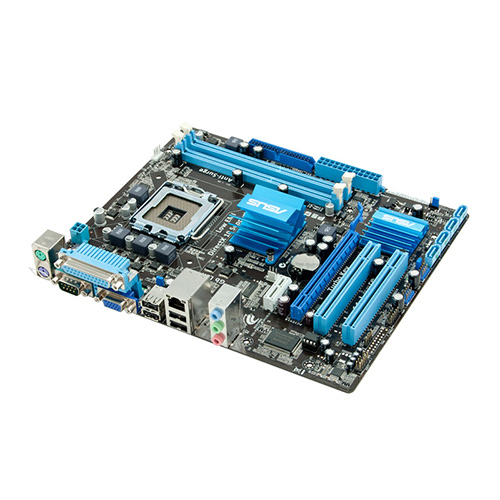

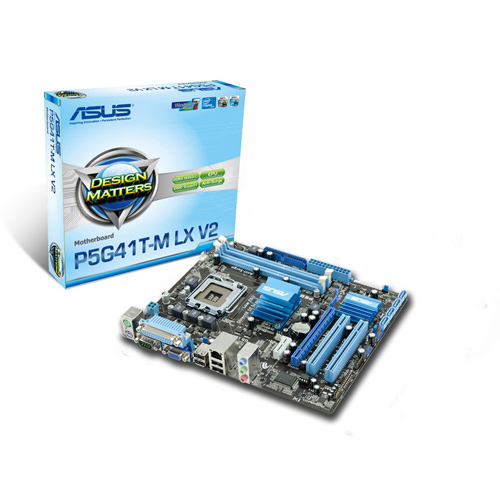

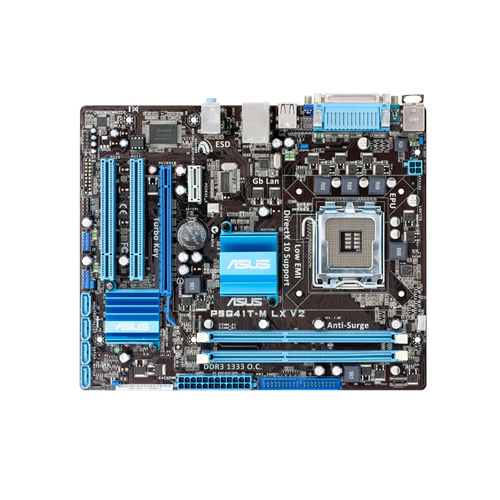

ASUS P5G41T-M LX V2

ASUS P5G41T-M LX V2

Model P5G41T-M LX V2Part no. 90-MIBEI0-G0EAY00Z

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P5G41T-M LX V2
Part number
90-MIBEI0-G0EAY00Z
Also known as
ASUS P5G41T-M LX V2 Intel® G41 LGA 775 (Socket T) micro ATX

Specifications

66 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 775 (Socket T)
Compatible processor seriesIntel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core
Maximum number of SMP processors1
Processor system buses supported800,1066,1333 MHz

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory8 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardGMA X4500
Maximum resolution2048 x 1536 pixels
DirectX version10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® G41
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI-X slots2

BIOS

BIOS typeAMI
BIOS memory size8 Mbit
ACPI version2.0

Weight & dimensions

Width244 mm
Depth201 mm

Packaging content

Cables includedSATA, UDMA
Drivers includedYes

Other features

Quick installation guideYes
