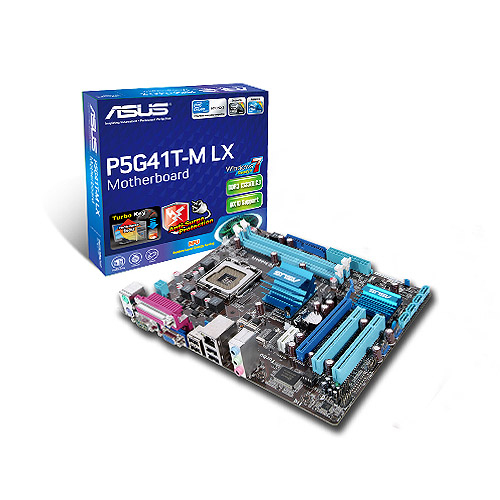

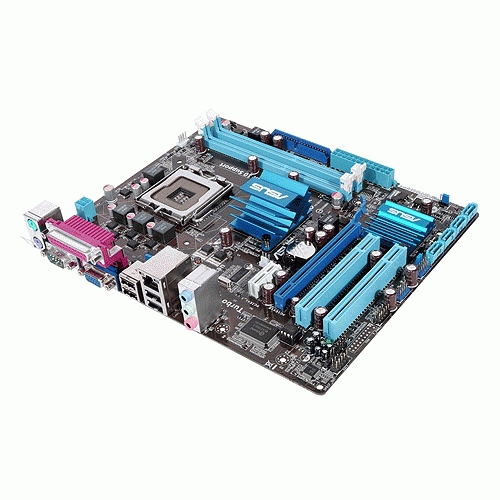

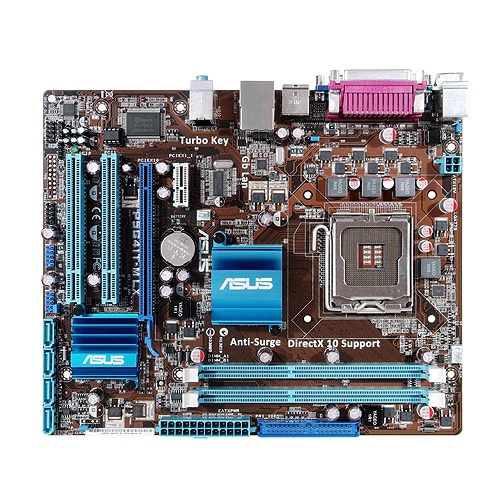

ASUS P5G41T-M LX
Model P5G41T-M LXPart no. 90-MIBBY0-G0EAY00Z-OEAN 5711045312120
45 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory1024 MB
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 1024 MB
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G41T-M LX
- Part numbers
- 90-MIBBY0-G0EAY00Z-O, 90-MIBBY0-G0EAY007, 90-MIBBC1-G0ECY0KZ, 90-MIBBCA-G0ECY0KZ
- EAN / UPC
- 5711045312120, 5711045123993, 4719543173510, 610839174225 +3 more
- Also known as
- ASUS P5G41T-M LX LGA 775 (Socket T) micro ATX
Specifications
45 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| On-board graphics card | Yes |
| Graphics card | GMA X4500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 201 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | SATA 3 Gb/s |
