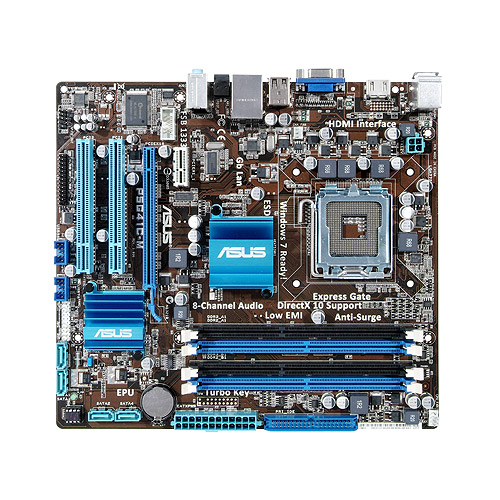

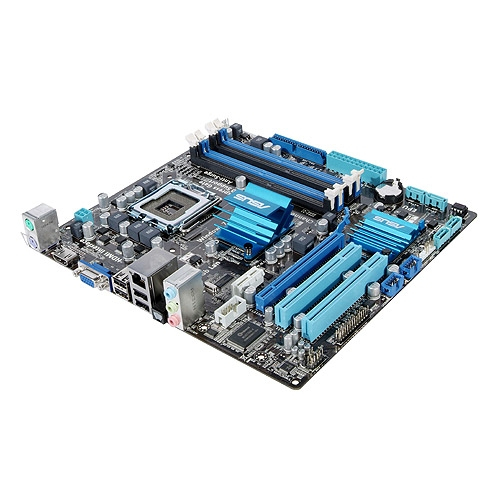

ASUS P5G41C-M LGA 775 (Socket T) micro ATX
Model P5G41C-MPart no. 90-MIBC50-G0EA0WZEAN 610839174386
34 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors2
- Networking features10/100/1000 Mbps
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 2
- Networking features
- 10/100/1000 Mbps
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G41C-M
- Part numbers
- 90-MIBC50-G0EA0WZ, 90-MIBC50-G0EAY0WZ, P5G41C-M
- EAN / UPC
- 610839174386, 4719543174388
- Also known as
- ASUS P5G41C-M LGA 775 (Socket T) micro ATX
Specifications
34 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card | GMA X4500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |

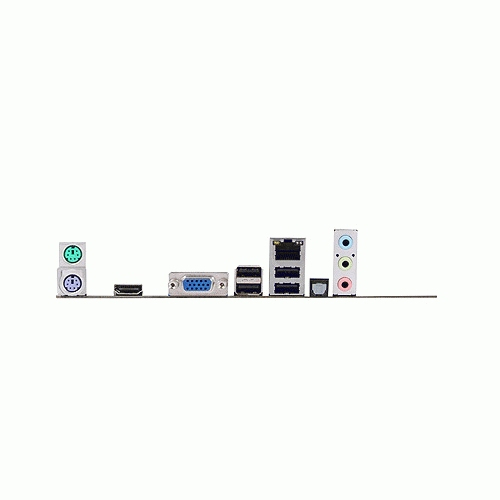

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 224 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
