ASUS P5G-MX LGA 775 (Socket T) micro ATX
Model P5G-MXPart no. 90-MBB780-G0EAY00ZEAN 610839154012
32 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Graphics cardGMA 950
- USB 2.0 connectors4
- Networking features10/100
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Graphics card
- GMA 950
- USB 2.0 connectors
- 4
- Networking features
- 10/100
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5G-MX
- Part numbers
- 90-MBB780-G0EAY00Z, P5G-MX, 90-MBB780-G0EAY0GZ
- EAN / UPC
- 610839154012, 4719543154014
- Also known as
- ASUS P5G-MX LGA 775 (Socket T) micro ATX
Specifications
32 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP / Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-E x16 1 x PCI-E x1 1 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update |
Other features
| Specification | Value |
|---|---|
| Special features | ASUS CrashFree BIOS 2 ASUS Q-Fan ASUS EZ Flash ASUS MyLogo |
| Manageability features | WOL, PXE, WOR @ Ring, PME WU |
What people say
Reviews & ratings
ASUS P5G-MX LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how ASUS P5G-MX LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5G-MX LGA 775 (Socket T) micro ATX

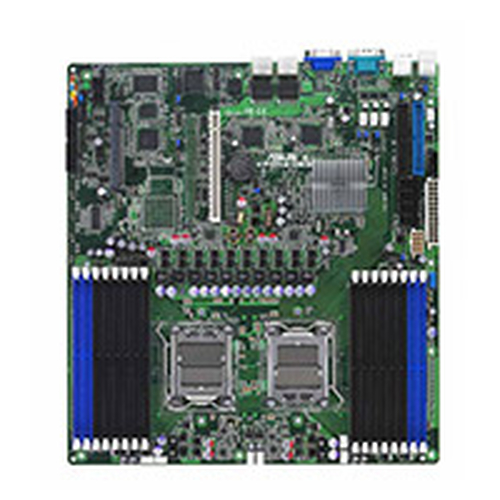

All motherboard comparisons- ASUS P5G-MX LGA 775 (Socket T) micro ATX vsASUS KFSN4-DRE/SAS Socket F (1207) SSI EEBCompare specs
- ASUS P5G-MX LGA 775 (Socket T) micro ATX vsASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEBCompare specs

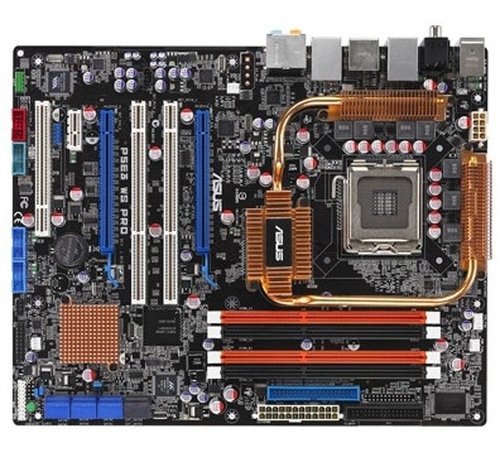

- ASUS P5G-MX LGA 775 (Socket T) micro ATX vsASUS P5E3 WS PROCompare specs

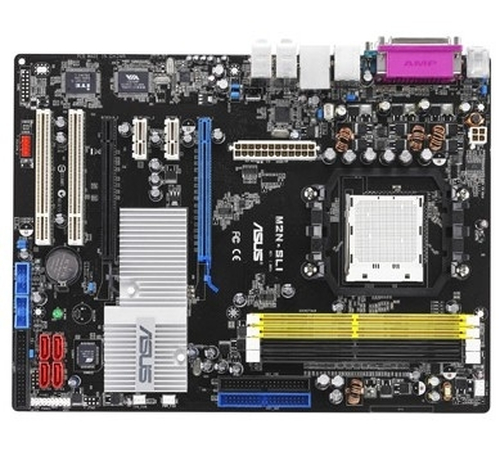

- ASUS P5G-MX LGA 775 (Socket T) micro ATX vsASUS M2N-SLI motherboard Socket AM2 ATXCompare specs
