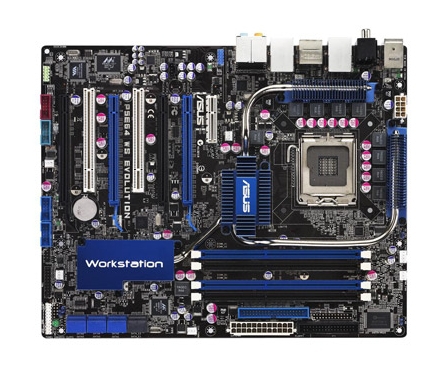

ASUS P5E64 WS Evolution
Model P5E64 WS EvolutionPart no. 90-MIB4F0-G0EAY00ZEAN 610839161461
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors6
- Motherboard form factorATX
- BIOS memory size16 Mbit
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 6
- Motherboard form factor
- ATX
- BIOS memory size
- 16 Mbit
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E64 WS Evolution
- Part numbers
- 90-MIB4F0-G0EAY00Z, P5E64 WS EVOLUTION
- EAN / UPC
- 610839161461, 4719543161463
- Also known as
- ASUS P5E64 WS Evolution LGA 775 (Socket T) ATX
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4 x PCIe x16 1 x PCIe x4 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
