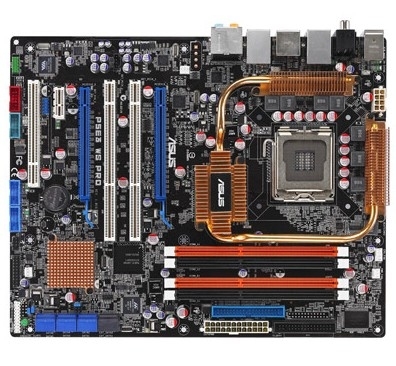

ASUS P5E3 WS Professional
Model P5E3 WS ProfessionalPart no. P5E3 WS PROFESSIONAL
43 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- USB 2.0 connectors6
- LAN controllerMarvell 88E8056
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 6
- LAN controller
- Marvell 88E8056
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E3 WS Professional
- Part numbers
- P5E3 WS PROFESSIONAL, 90-MBB7K0-G0AAY00Z
- Also known as
- ASUS P5E3 WS Professional LGA 775 (Socket T) ATX
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS P5E3 WS Professional
No reviews yet
Be the first to tell others how ASUS P5E3 WS Professional works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5E3 WS Professional
All motherboard comparisons- ASUS P5E3 WS Professional vsASUS M2N-L Socket AM2 ATXCompare specs
- ASUS P5E3 WS Professional vsASUS P5K SE/EPUCompare specs
- ASUS P5E3 WS Professional vsASUS P5E3 Premium/WiFi-APCompare specs
- ASUS P5E3 WS Professional vsASUS M3N-HT Deluxe/MempipeCompare specs
- ASUS P5E3 WS Professional vsMSI K9AGM-FID Socket AM2 micro ATXCompare specs
- ASUS P5E3 WS Professional vsMSI 915GM-FR motherboard LGA 775 (Socket T) micro ATXCompare specs
- ASUS P5E3 WS Professional vsMSI P7N ZilentCompare specs

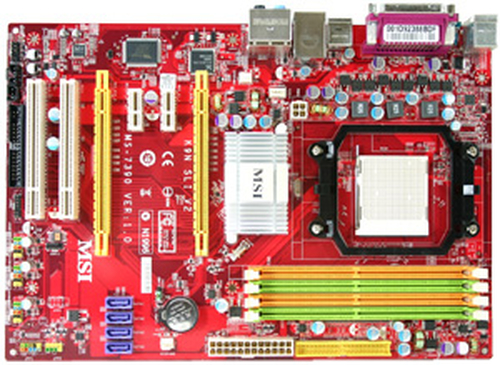

- ASUS P5E3 WS Professional vsMSI K9N SLI-F V2Compare specs
