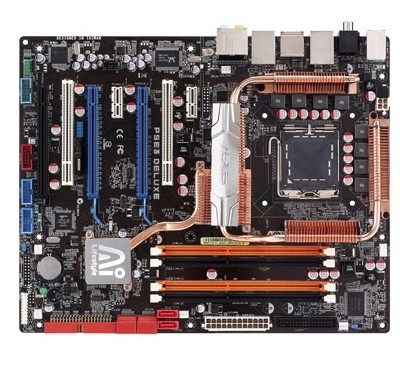

ASUS P5E3 Deluxe
Model P5E3 DeluxePart no. 90-MBB70A-G0EAY00ZEAN 4719543156414
46 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresDual Gigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Dual Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E3 Deluxe
- Part numbers
- 90-MBB70A-G0EAY00Z, P5E3DELUXE, P5E3 DELUXE/DDR3
- EAN / UPC
- 4719543156414, 610839155880, 4719543155882
- Also known as
- ASUS P5E3 Deluxe LGA 775 (Socket T) ATX
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4, Intel® Pentium® D |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | ASUS AI Booster ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3x PCIe x16 2x PCIe x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Suite |
Other features
| Specification | Value |
|---|---|
| Controller interface type | JMicron JMB363 |
| Floppy disk drive connector | Yes |
| Special features | ASUS EPU ASUS AI Nap ASUS Q-Fan ASUS Q-Shield ASUS Q-Connector ASUS O.C. Profile ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 3 |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS P5E3 Deluxe
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5E3 Deluxe
All motherboard comparisons- ASUS P5E3 Deluxe vsASUS K8V-MX VIA K8M800 Socket 754 micro ATXCompare specs

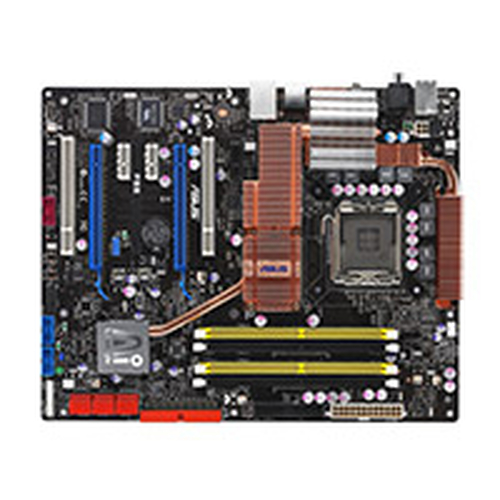

- ASUS P5E3 Deluxe vsASUS P5E3 Deluxe / DDR3Compare specs
- ASUS P5E3 Deluxe vsASUS P5E3 LGA 775 (Socket T) ATXCompare specs
- ASUS P5E3 Deluxe vsASUS P5E LGA 775 (Socket T) ATXCompare specs
- ASUS P5E3 Deluxe vsMSI 945PL Neo3-FCompare specs
- ASUS P5E3 Deluxe vsMSI P35 Neo2-FIRCompare specs

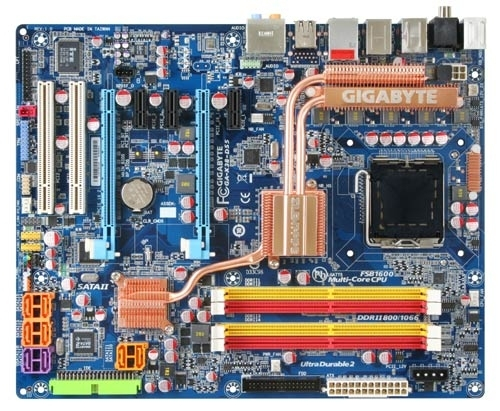

- ASUS P5E3 Deluxe vsGIGABYTE GA-X38-DQ6, Intel® X38 + ICH9R ChipsetCompare specs
