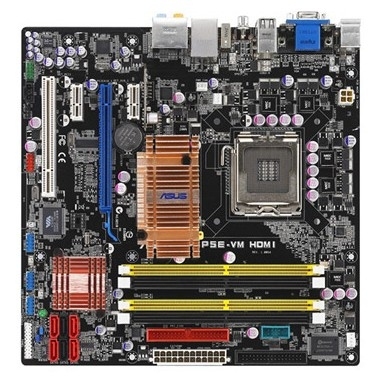

ASUS P5E-VM HDMI
Model P5E-VM HDMIPart no. 90-MBB7H0-G0EAY00ZEAN 610839156290
43 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- Graphics cardGMA X3500
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- Graphics card
- GMA X3500
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E-VM HDMI
- Part numbers
- 90-MBB7H0-G0EAY00Z, P5E-VM HDMI, 90-MBB7H0-G0AAY00Z
- EAN / UPC
- 610839156290, 4719543156292
- Also known as
- ASUS P5E-VM HDMI LGA 775 (Socket T) micro ATX
Specifications
43 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA X3500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | PT2, ASUS C.P.R, SFS |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-E X16 2 x PCI-E X1 1 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/6 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS P5E-VM HDMI
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5E-VM HDMI
All motherboard comparisons- ASUS P5E-VM HDMI vsASUS M3A32-MVP Deluxe/WiFi-APCompare specs
- ASUS P5E-VM HDMI vsASUS motherboard M2-CROSSHAIRCompare specs

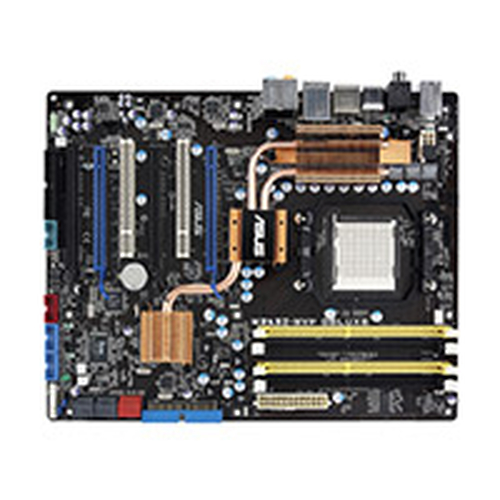

- ASUS P5E-VM HDMI vsASUS M3A32-MVP DeluxeCompare specs

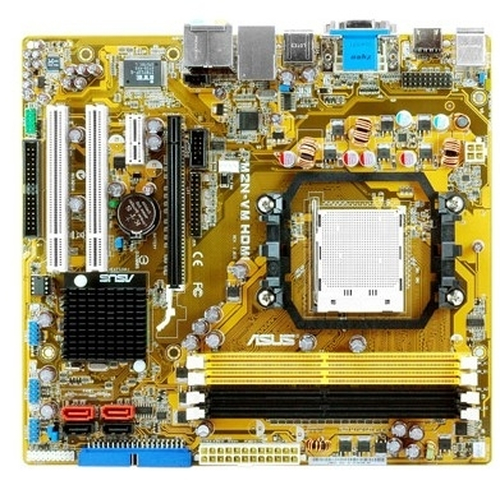

- ASUS P5E-VM HDMI vsASUS M2N-VM HDMICompare specs
