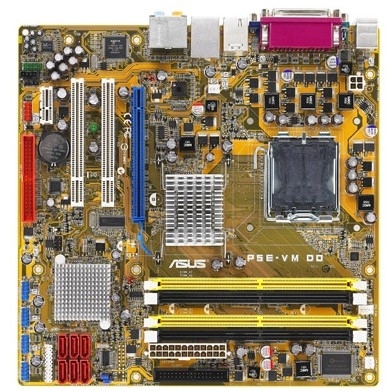

ASUS P5E-VM DO
Model P5E-VM DOPart no. 90-MBB7E0-G0EAY00ZEAN 610839154432
45 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1
- Maximum graphics card memory384 MB
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Maximum graphics card memory
- 384 MB
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E-VM DO
- Part numbers
- 90-MBB7E0-G0EAY00Z, P5E-VM DO, 90-MBB7E0-G0AAY00Z
- EAN / UPC
- 610839154432, 610839156023, 4719543156025
- Also known as
- ASUS P5E-VM DO LGA 775 (Socket T) ATX
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 384 MB |
| Graphics card | GMA 3100 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | ASUS C.P.R. SFS vCore vDIMM |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCIe x16 1x PCIe x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | ASUS Q-Connector ASUS O.C. Profile ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS AI Gear 2 ASUS AI Nap |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
