ASUS P5E LGA 775 (Socket T) ATX
Model P5EPart no. 90-MBB7X0-G0EAY00ZEAN 610839156740
31 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresMarvell88E8056 PCIe Gigabit LAN
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Marvell88E8056 PCIe Gigabit LAN
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5E
- Part numbers
- 90-MBB7X0-G0EAY00Z, P5E, 90-MBB7X0-G0AAY00Z
- EAN / UPC
- 610839156740, 4719543156742
- Also known as
- ASUS P5E LGA 775 (Socket T) ATX
Specifications
31 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell88E8056 PCIe Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCIe2.0 x16 3 x PCIe x1 2 x PCI |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS Update ASUS AI Suite Anti-virus (OEM) Image-Editing Suite |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1 x IDE |
| RAID controller type | JMicron PATA, SATA |
What people say
Reviews & ratings
ASUS P5E LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how ASUS P5E LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5E LGA 775 (Socket T) ATX
All motherboard comparisons- ASUS P5E LGA 775 (Socket T) ATX vsASUS P5E3 LGA 775 (Socket T) ATXCompare specs
- ASUS P5E LGA 775 (Socket T) ATX vsASUS P5E3 DeluxeCompare specs

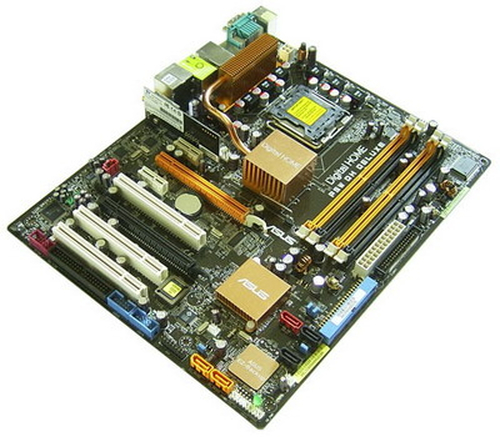

- ASUS P5E LGA 775 (Socket T) ATX vsASUS P5W DH Deluxe Digital Home SeriesCompare specs

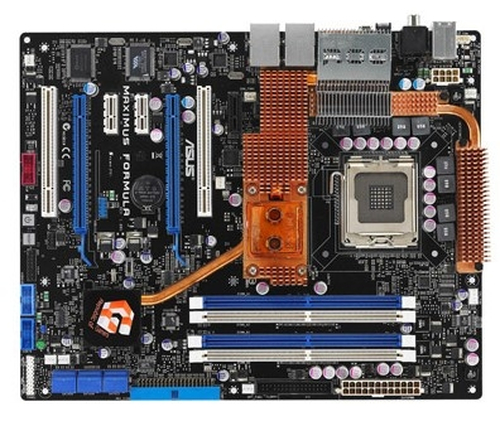

- ASUS P5E LGA 775 (Socket T) ATX vsASUS Maximus Formula (Special Edition)Compare specs
