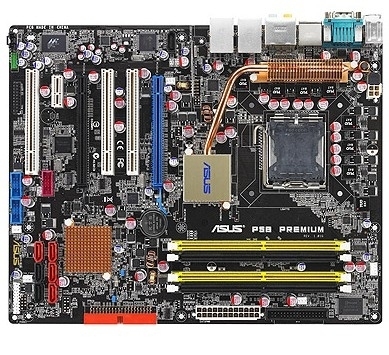

ASUS P5B Premium
Model P5B PremiumPart no. 90-MBB4EF-G0EAY00ZEAN 4719543149478
45 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors2
- Networking featuresDual Gigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 2
- Networking features
- Dual Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5B Premium
- Part numbers
- 90-MBB4EF-G0EAY00Z, P5B PREMIUM
- EAN / UPC
- 4719543149478, 4719543167489
- Also known as
- ASUS P5B Premium LGA 775 (Socket T) ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 4 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Manageability features | WfM 2.0, DMI 2.0, WOL - PME, WOR - PME, PXE |
What people say
Reviews & ratings
ASUS P5B Premium
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5B Premium
All motherboard comparisons- ASUS P5B Premium vsASUS M3A32-MVP Deluxe/WiFi-AP MotherboardCompare specs
- ASUS P5B Premium vsASUS P6T6 WS RevolutionCompare specs

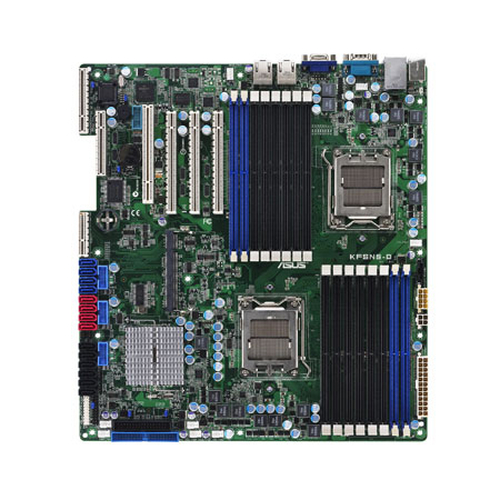

- ASUS P5B Premium vsASUS KFSN5-D NVIDIA nForce Pro 3600 Socket F (1207) SSI EEBCompare specs

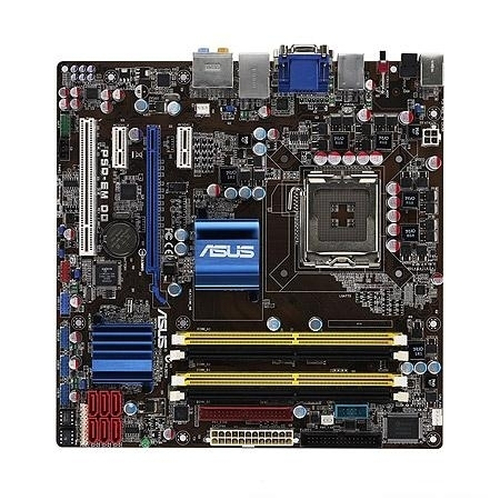

- ASUS P5B Premium vsASUS P5Q-EM DO - Intel Socket 775Compare specs
